Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C

Certification
China Beijing JiaAn Electronics Technology Co., Ltd., certification
China Beijing JiaAn Electronics Technology Co., Ltd., certification
Customer Reviews
BEA Inc. receives great customer service from the entire Cansec team. We appreciate the prompt responses and feedback to our questions and enquiries. Cansec immediately responds and tries to fix or improve any complaints or issues that we may have.

—— BEA Inc.

Thanks for JiaAn's cooperation and support as always, and hope to continue to maintain close cooperation and good collaborative work in the follow-up work.

—— Jingdong health (JDH)

Thank you for your valuable cooperation for many years.

—— UDEA

I'm Online Chat Now

Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C

Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C
Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C

Large Image :  Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3235SA-C
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.5$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C

Description
Size: 18.2*33*2.8mm TX Power: 16.5dBm
RX Sensitivity: -95dBm TX Current 2.4GHz: 380mA
RX Current 2.4GHz: 77mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: CC3235
TX Current 5G: 470mA RX Current 5GHz: 87mA
High Light:

Dual Mode 5Ghz Wifi Module

,

Ipv4 Ipv6 5g wifi module

,

1uA Wireless IoT Gateway Module

Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 0

Cansec Wireless IoT Gateway Ipv4 & Ipv6 2.4Ghz & 5Ghz Wifi Module TA3235SSA-C Ti CC3235 dual mode Wifi Module Switch

Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
2.4G
-
-
5.2
uA
5G
-
-
5.2
uA
Receive mode
(MCU active)
2.4G
-
-
77
mA
5G
-
-
87
mA
Transmit Mode(CW)
( at +18 dBm ,+3.3V)
2.4G
-
-
380
mA
5G

-
470
mA
TX Power(CW)
2.4G
-
16.5
18
dBm

5G
-
14.5
18
dBm
RX Sensitivity
2.4G (at 1 DSSS)
-
-
-94.5
dBm

5G (at 6 OFDM)
-
-
-89
dBm



Cansec Wireless IoT Gateway Ipv4 & Ipv6 2.4Ghz & 5Ghz Wifi Module TA3235SSA-C Ti CC3235 dual mode Wifi Module Switch

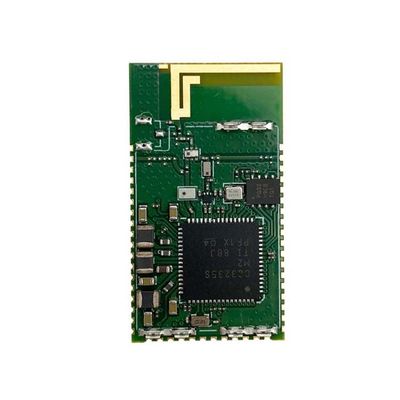

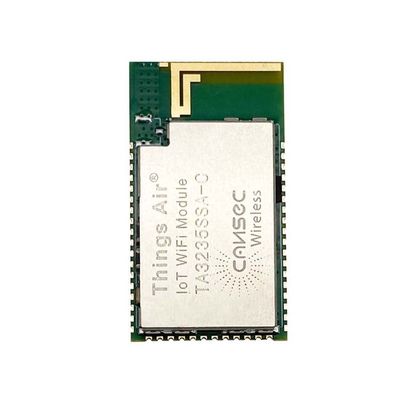

The TA3235 is a WIFI module. The integrated hardware solution comprises the CC3235S/CC3235SF Wi-Fi wireless MCU. Customers may reuse the reference design to design their own Board. The software and hardware design resources reduce engineering efforts, shorten time to market, and help developers and customers release their products with cloud connectivity features faster.

Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 1

Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 2

Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 3

Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 4Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 5

Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 6

Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 7Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 8Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 9Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 10

Dual Mode 5Ghz Wifi Module Ipv4 Ipv6 1uA Wireless IoT Gateway Module TA3235SA-C 11
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.

One wireless standard that is already familiar to many is IrDA or infrared. Infrared uses pulses of non-visible light to communicate between two devices, such as a remote control to a television or DVD player. One drawback of IrDA is that there must be a clear line of sight between the two devices, and the other disadvantage is that IrDA normally only operates between two devices at a time. An infrared remote control unit cannot communicate with the DVD player while it is signaling the TV. Bluetooth® overcomes these limitations by using radio waves to send information in packet bursts. The bursts can be sent to any device within 'earshot' allowing communication with several devices at once.
