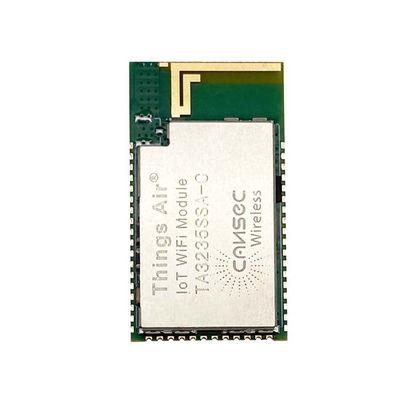

2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset

2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset
2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset

Large Image :  2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3235SA-C
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.5$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset

Description

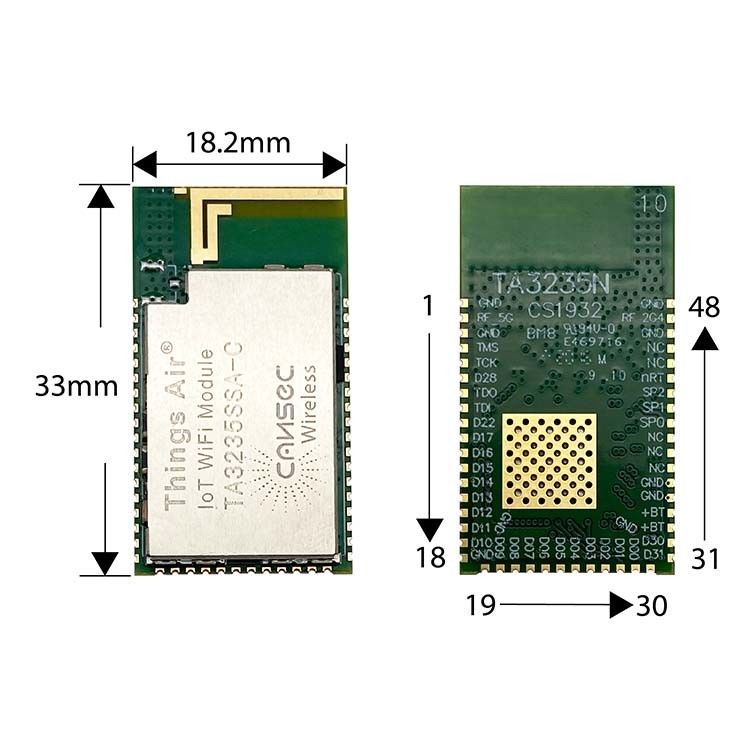

Size: 18.2*33*2.8mm TX Power: 16.5dBm
RX Sensitivity: -95dBm TX Current 2.4GHz: 380mA
RX Current 2.4GHz: 77mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: CC3235
TX Current 5G: 470mA RX Current 5GHz: 87mA
High Light:

2.4G 5G Dual Band Wifi Module

,

Dual Band Wifi Module TA3235SSA-C

,

Ti CC3235 wifi dual band module

2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 0

Cansec AT Command Available TA3235SSA-C Ti CC3235 Rf Wireless Transmitter And Receiver Dual Mode Module Wifi Module

Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
2.4G
-
-
5.2
uA
5G
-
-
5.2
uA
Receive mode
(MCU active)
2.4G
-
-
77
mA
5G
-
-
87
mA
Transmit Mode(CW)
( at +18 dBm ,+3.3V)
2.4G
-
-
380
mA
5G

-
470
mA
TX Power(CW)
2.4G
-
16.5
18
dBm

5G
-
14.5
18
dBm
RX Sensitivity
2.4G (at 1 DSSS)
-
-
-94.5
dBm

5G (at 6 OFDM)
-
-
-89
dBm



Cansec AT Command Available TA3235SSA-C Ti CC3235 Rf Wireless Transmitter And Receiver Dual Mode Module Wifi Module

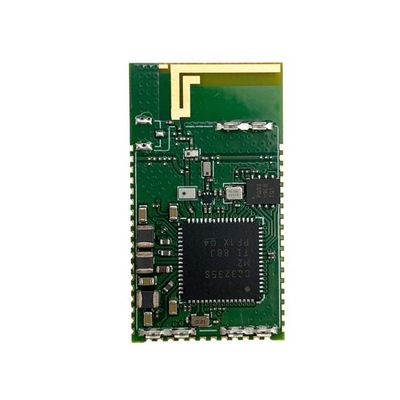

The TA3235 is a WIFI module. The integrated hardware solution comprises the CC3235S/CC3235SF Wi-Fi wireless MCU. Customers may reuse the reference design to design their own Board. The software and hardware design resources reduce engineering efforts, shorten time to market, and help developers and customers release their products with cloud connectivity features faster.

2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 1

2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 2

2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 3

2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 42.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 5

2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 6

2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 72.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 82.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 92.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 10

2.4G 5G Dual Band Wifi Module TA3235SSA-C Ti CC3235 Chipset 11
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.


Network Architecture

Network topologies supported in Bluetooth include point-to-point, broadcast, and mesh connectivity. Point-to-point connectivity is available for devices that operate in classic Bluetooth or BLE. The broadcast and mesh connection topologies are only supported for BLE devices.

Point-to-Point and Point-to-Multipoint Connection Topology

Devices using point-to-point communication operate in a piconet. Point-to-point piconets define one-to-one device communication links. Examples of point-to-point links are links between PCs or mobile phones and peripherals such as headsets, printers, and fitness trackers. Multiple piconets connect to one another in a scatternet topology. Point-to-multipoint piconets define one to more than one device communication links.

This image shows a scatternet of three piconets. Each piconet shows one device in the role of master (M), with other devices in the slave (S) or idle (I) roles. The image also shows one device (M/S) assigned the master role in one piconet and slave in another piconet.
