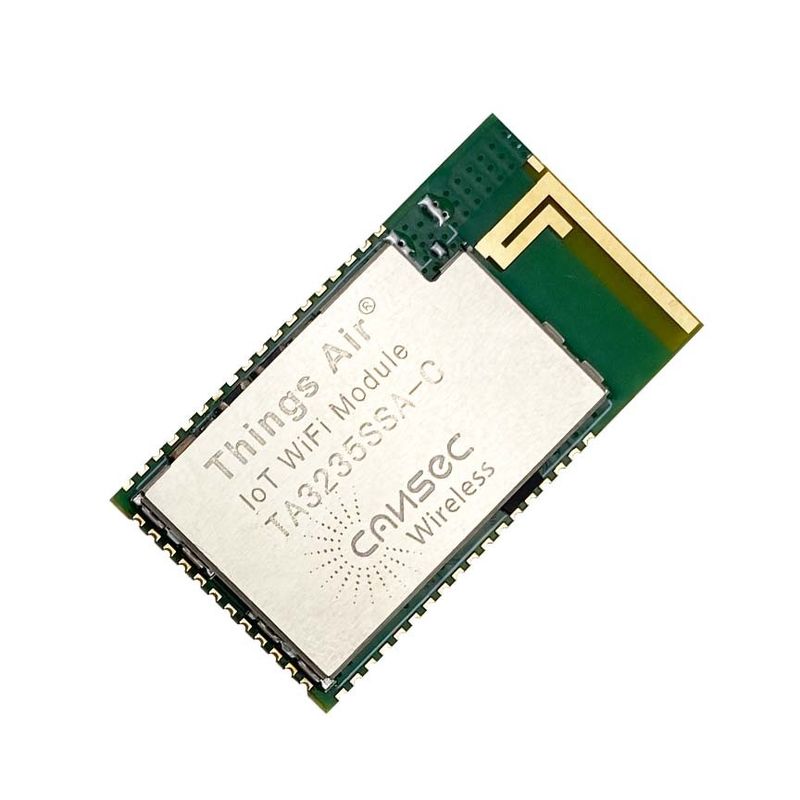

TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module

TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module
TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module

Large Image :  TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3235SA-C
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.5$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module

Description
Size: 18.2*33*2.8mm TX Power: 16.5dBm
RX Sensitivity: -95dBm TX Current 2.4GHz: 380mA
RX Current 2.4GHz: 77mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: CC3235
TX Current 5G: 470mA RX Current 5GHz: 87mA
Highlight:

IPV4 & IPV6 IoT Wifi Module

,

TI CC3235 IoT Wifi Module

,

Home Automation Wifi Receiver Module

Buy Links↓↓↓

https://www.alibaba.com/product-detail/AT-Command-Available-TA3235SSA-C-Ti_1600859096508.html?spm=a2747.product_manager.0.0.427671d2afXoDG



TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 0

Cansec TA3235SSA-C High Performance Ti CC3235 Ipv4 & Ipv6 Wifi Module Home Automation Rf Wifi Modules For IoT

Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
2.4G
-
-
5.2
uA
5G
-
-
5.2
uA
Receive mode
(MCU active)
2.4G
-
-
77
mA
5G
-
-
87
mA
Transmit Mode(CW)
( at +18 dBm ,+3.3V)
2.4G
-
-
380
mA
5G

-
470
mA
TX Power(CW)
2.4G
-
16.5
18
dBm

5G
-
14.5
18
dBm
RX Sensitivity
2.4G (at 1 DSSS)
-
-
-94.5
dBm

5G (at 6 OFDM)
-
-
-89
dBm



Cansec TA3235SSA-C High Performance Ti CC3235 Ipv4 & Ipv6 Wifi Module Home Automation Rf Wifi Modules For IoT

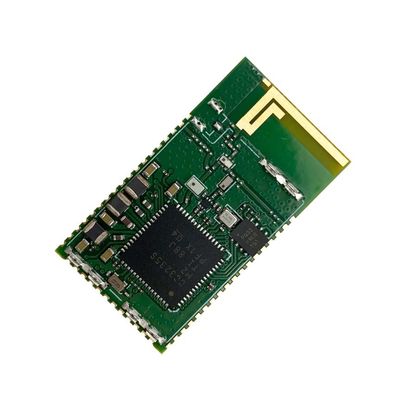

The TA3235 is a WIFI module. The integrated hardware solution comprises the CC3235S/CC3235SF Wi-Fi wireless MCU. Customers may reuse the reference design to design their own Board. The software and hardware design resources reduce engineering efforts, shorten time to market, and help developers and customers release their products with cloud connectivity features faster.

TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 1

TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 2

TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 3

TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 4TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 5

TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 6

TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 7TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 8TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 9TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 10

TI CC3235 IPV4 & IPV6 IoT Wifi Module Home Automation Wifi Receiver Module 11
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.


Bluetooth Low Energy Core Configuration

The Bluetooth Core Specification, Volume 0, Part B, Section 4.4 specifies a set of required features that must be implemented to model fully compliant Bluetooth links with the low energy (LE) core configuration.

The LE core configuration defines three main layers - Application, Host, and Controller. The Communications Toolbox Library for the Bluetooth Protocol provides features to model the host and controller layers. Requirements defined in the Bluetooth Core Specification for the host and controller include

Layer Sublayer Bluetooth Specification Volume Required Features
Host Logical link control and adaptation protocol (L2CAP) Volume 3, part A If the GAP Peripheral or Central role is supported, L2CAP LE Signaling Channel (CID 0x0005) and all mandatory features associated with it.
Generic access profile (GAP) Volume 3, part C All mandatory features for at least one of the LE GAP roles (Broadcaster, Observer, Peripheral, or Central) in sections 9–12 and section 15.
Attribute profile (ATT) Volume 3, part F If the GAP Peripheral or Central role is supported, all mandatory features.
Generic attribute profile (GATT) Volume 3, part G GATT is mandatory when ATT is supported. When supported, all mandatory features.
Security manager (SM) Volume 3, part H If the GAP Peripheral or Central role is supported, all mandatory features.
Controller Physical (PHY) Volume 6, part A All mandatory features.
Link layer (LL) Volume 6, part B All mandatory features.

For a description of the mapping between Bluetooth protocol stack functionality and the OSI reference model, see Bluetooth Protocol Stack.
