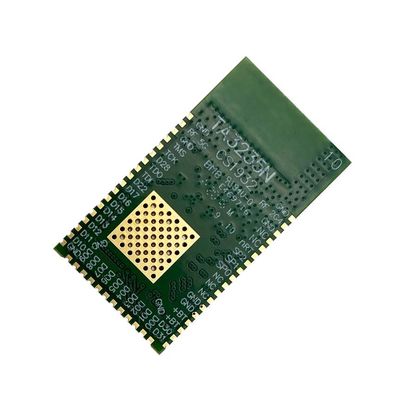

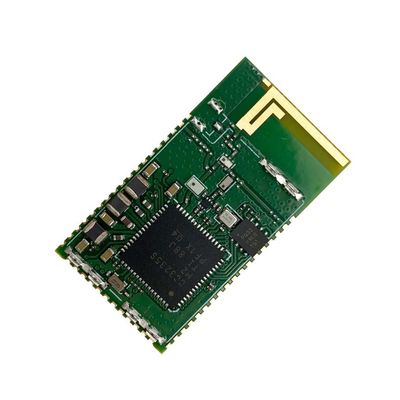

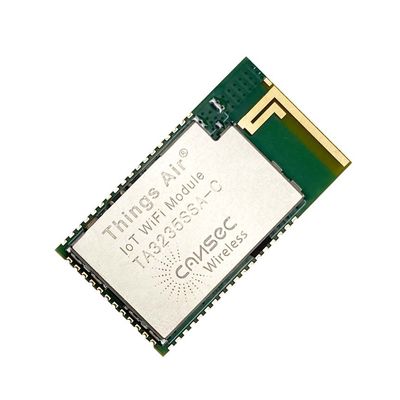

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module
Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module

Large Image :  Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3235SA-C
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.5$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module

Description
Size: 18.2*33*2.8mm TX Power: 16.5dBm
RX Sensitivity: -95dBm TX Current 2.4GHz: 380mA
RX Current 2.4GHz: 77mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: CC3235
TX Current 5G: 470mA RX Current 5GHz: 87mA

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 0

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module

Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
2.4G
-
-
5.2
uA
5G
-
-
5.2
uA
Receive mode
(MCU active)
2.4G
-
-
77
mA
5G
-
-
87
mA
Transmit Mode(CW)
( at +18 dBm ,+3.3V)
2.4G
-
-
380
mA
5G

-
470
mA
TX Power(CW)
2.4G
-
16.5
18
dBm

5G
-
14.5
18
dBm
RX Sensitivity
2.4G (at 1 DSSS)
-
-
-94.5
dBm

5G (at 6 OFDM)
-
-
-89
dBm



Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module



The TA3235 is a WIFI module. The integrated hardware solution comprises the CC3235S/CC3235SF Wi-Fi wireless MCU. Customers may reuse the reference design to design their own Board. The software and hardware design resources reduce engineering efforts, shorten time to market, and help developers and customers release their products with cloud connectivity features faster.

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 1

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 2

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 3

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 4Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 5

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 6

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 7Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 8Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 9Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 10

Cansec High Performance Wireless Rf Transceiver IoT Wifi Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module 11

FAQ

Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.

Broadcast Connection Topology

Broadcast piconets establish one-to-many communication links for BLE devices. Examples of broadcast links are retail point-of-interest information, indoor navigation, and asset tracking.

Mesh Connection Topology

Mesh networks establish the option of many-to-many communication links for BLE devices. Mesh topology enables the creation of large-scale device networks. Mesh is ideally suited for control, monitoring, and automation systems that require reliable and secure communication between thousands of devices.

The Bluetooth SIG specifies mesh networking requirements to enable an interoperable many-to-many (m:m) mesh networking solution for Bluetooth Low Energy (LE) wireless technology. Mesh networks are ideally suited for large-scale device networks supporting building automation, sensor networks, asset tracking, and other solutions requiring reliable and secure communication between multiple devices. Bluetooth SIG adopted these specifications.
