Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach

Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach
Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach

Large Image :  Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: AN1310UA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 4.12$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5~8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach

Description
Size: 15mm*22mm*3.2mm TX Power: 13dBm
RX Sensitivity: -124dBm TX Current: 25mA
RX Current: 5.5mA Standby Current: 1uA
Antenna: UFL Connector Chipset: CC1310 By Texas Instruments
Frequency: 434/470/868/915MHz Reach: 700m
Working Tempurature: -20~+70℃
High Light:

RF 434 MHz RTS Module

,

Low Power CC1310 Module

,

UFL Connector RTS Module

Cansec Low Power CC1310 RF 434 MHz Wireless Module Industrial Control Wireless Module

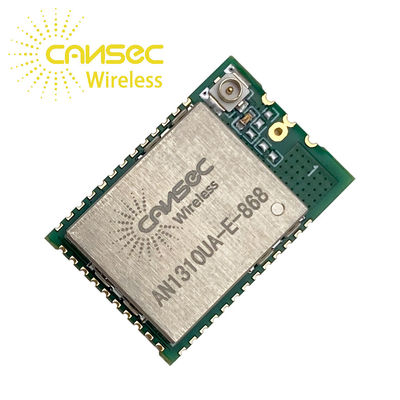

Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach 0

Vbat=3.3V Fquency=434/470MHz

Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.8
V
Operating Temperature
-20
-
+70


Current Consumption
Sleep Mode
-
-
1
uA
Receive mode
-
5.5
-
mA
Transmit Mode (For Carrier &&UFL Connector)
-
35
38
mA
TX Power (For Carrier)
-
13
14
dBm
RX Sensitivity
-
-
-124
dBm
Distance(434M)
400
m
Vbat=3.3V Fquency=868/915MHz
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.8
V
Operating Temperature
-20
-
+70


Current Consumption
Sleep Mode
-
-
1
uA
Receive mode
-
5.5
-
mA
Transmit Mode (For Carrier &&UFL Connector)
-
34
36
mA
TX Power (For Carrier)
-
13
14
dBm
RX Sensitivity
-
-
-115
dBm
Distance(868M)
700
m





Cansec Low Power CC1310 RF 434 MHz Wireless Module Industrial Control Wireless Module

1. The AN1310 module is designed based on CC1310F128. The CC1310 device is the first part in a Sub-1-GHz family of cost-effective, ultra low power wireless MCUs. The CC1310 device combines a flexible, very low power RF transceiver with a powerful 48-MHz Cortex-M3 microcontroller in a platform supporting multiple physical layers and RF standards. A dedicated Radio Controller (Cortex-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultra low power and flexibility. The low-power consumption of the CC1310 device does not come at the expense of RF performance; the CC1310 device has excellent sensitivity and robustness (selectivity and blocking) performance.
2. The CC1310 device is a highly integrated, true single-chip solution incorporating a complete RF system and an on-chip DC-DC converter.
3. Sensors can be handled in a very low-power manner by a dedicated autonomous ultra low power MCU that can be configured to handle analogue and digital sensors; thus the main MCU (Cortex-M3) is able to maximize sleep time.
4. The CC1310 power and clock management and radio systems require specific configuration and handling by software to operate correctly. This has been implemented in the TI RTOS, and it is therefore recommended that this software framework is used for all application development on the device. The complete TI-RTOS and device drivers are offered in source code free of charge.

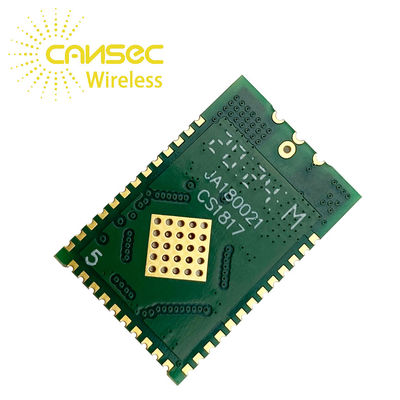

Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach 1

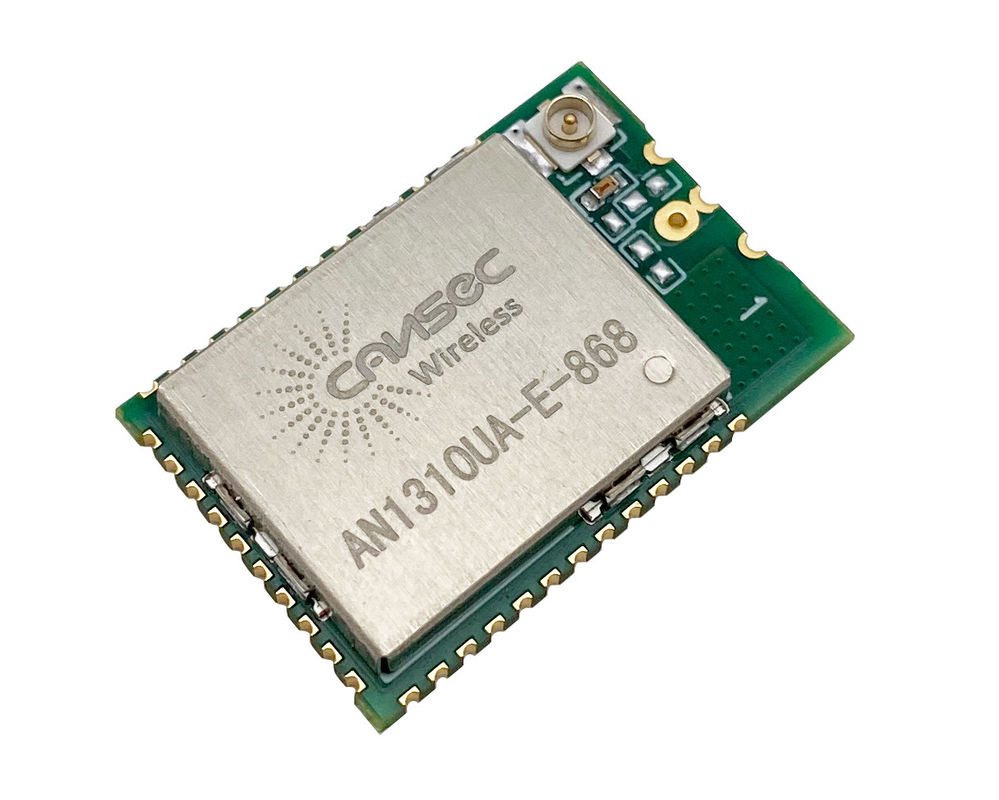

Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach 2

Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach 3

Pad

Number



Name



Pin Type



Description

1 GND Ground Pin Connect to GND
2 DIO_1 Digital I/O GPIO, Sensor Controller
3 DIO_2 Digital I/O GPIO, Sensor Controller
4 DIO_3 Digital I/O GPIO, Sensor Controller
5 DIO_4 Digital I/O GPIO, Sensor Controller
6 DIO_5 Digital I/O GPIO, Sensor Controller, High drive capability
7 DIO_6 Digital I/O GPIO, Sensor Controller, High drive capability
8 DIO_7 Digital I/O GPIO, Sensor Controller, High drive capability
9 GND Ground Pin Connect to GND
10 VDD Power 1.8V to 3.8V main chip supply
11 DIO_8 Digital I/O GPIO
12 DIO_9 Digital I/O GPIO
13 DIO_10 Digital I/O GPIO
14 DIO_11 Digital I/O GPIO
15 DIO_12 Digital I/O GPIO
16 DIO_13 Digital I/O GPIO
17 DIO_14 Digital I/O GPIO
18 DIO_15 Digital I/O GPIO
19 JTAG_TMSC Digital I/O JTAG TMSC, High drive capability
20 JTAG_TCKC Digital I/O JTAG TCKC
21 DIO_16 Digital I/O GPIO, JTAG_TDO, High drive capability
22 DIO_17 Digital I/O GPIO, JTAG_TDI, High drive capability
23 DIO_18 Digital I/O GPIO
24 DIO_19 Digital I/O GPIO
25 DIO_20 Digital I/O GPIO
26 DIO_21 Digital I/O GPIO
27 DIO_22 Digital I/O GPIO









     Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach 4

Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach 5

Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach 6

Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach 7

Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach 8

Low Power CC1310 RF 434 MHz RTS Module UFL Connector 700m Reach 9
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.

Contact Details
Beijing JiaAn Electronics Technology Co., Ltd.,

Contact Person: Sarolyn Kong

Send your inquiry directly to us (0 / 3000)
