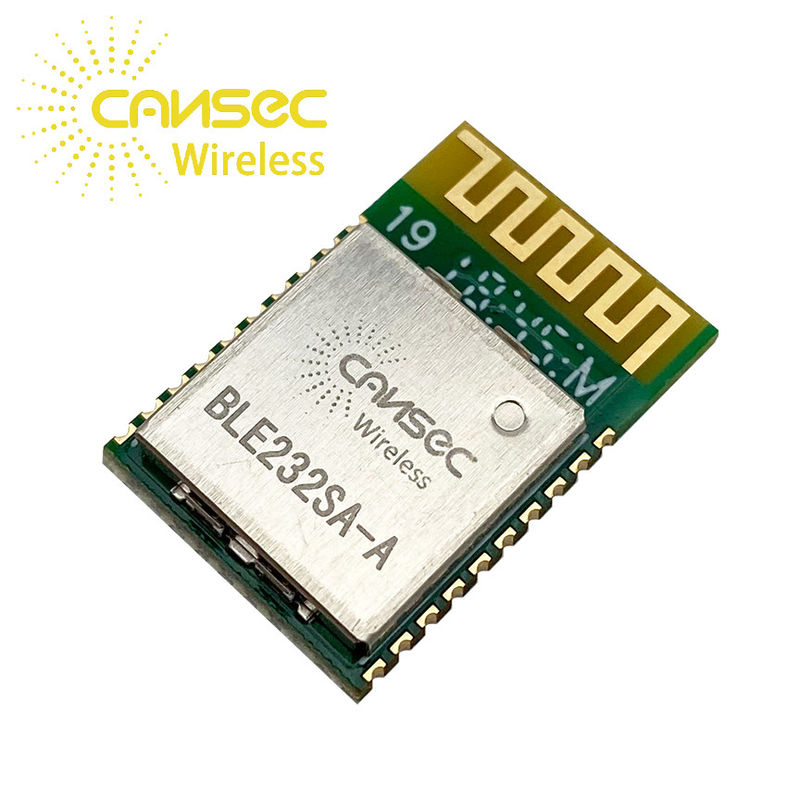

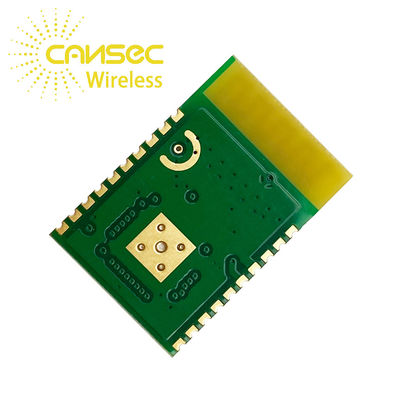

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A
ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A

Large Image :  ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE232
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.27$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A

Description
Chipset: BlueNRG 232 Size: 12.5*18.5*2.6mm
Flash / RAM: 256KB / 24KB TX Power: 8dBm
TX Current: 15.1mA RX Sensitivity: -88dBm
RX Current: 7.7mA Sleep Current Consumption: 1μA
I/O: 15 Protocol: BLE5 & Mesh
Antenna: PCB Antenna Range: 100m
Frequency: 2.4GHz
Highlight:

ST BLUENRG-2 RTS Module

,

BLUENRG-2 Wireless Bluetooth Module

,

BLE232SA-A

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A 0

Iot smart home Cansec Ble232SA-A St Bluenrg-2 wireless Bluetooth Module

Parameter
Min
Typ

 Max
Unit
Operation Voltage
1.7
-
3.6
V
Operation Temperature
-30
-
85
°C
Current Consumption
Rest
-
5
-
mA
Standby
-
500
-
mA
Transmit Mode (8dBm)
-
15.1
-
mA
TX Power
-
-
8
dBm
RX Sensitivity
-
-
-88
dBm

Iot smart home Cansec Ble232SA-A St Bluenrg-2 wireless Bluetooth Module



Description



BLE232SA/UA series module is designed based on ST company's BlueNRG-2. The BlueNRG-2 is a very low power Bluetooth low energy (BLE5.0)single-mode system-on-chip compliant with Bluetooth specification.

The BlueNRG-2 extends the features of the award-winning BlueNRG network processor, enabling the usage of embedded Cortex M0 for running user application code.

The BlueNRG-2 includes 256kB of programming Flash memory, 24 kB of static RAM memory with retention (two 12kB banks) and SPI, UART, I2C standard communication interface peripherals. It also features multifunction timers, watchdog, RTC and DMA controller.

An ADC is available for interfacing with analog sensors, and for reading the measurement of the integrated battery monitor. A digital filter is available for processing PDM stream.

The BlueNRG-2 offers the same excellent RF performance as the BlueNRG radio, and the integrated high-efficiency DC/DC converter keeps the same ultra-low power characteristics, but the BlueNRG-2 improves the BlueNRG sleep mode current consumption allowing a further increase in the battery lifetime of the applications.



Applications

  • Watches
  • Fitness, wellness and sports
  • Consumer medical
  • Security/proximity
  • Remote control
  • Home and industrial automation
  • Assisted living
  • Mobile phone peripherals
  • Lighting PC peripher



ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A 1
Pad Numbe





Name





Pin Type





Description
1 RESET_N I System reset





2





DIO13

 OD GPI 13
I UART_CTS
I/O I2C1_DAT



3



DIO12

 OD GPI 12
I/O I2C1_CLK
4 GND Ground Pin Connect to GND
5 VCC POWER Battery voltage input







6







DIO11

 I/O General-purpose digital I/O
I UART_RXD
I/O SPI_CS1
O CLK_32K







7







DIO10

 I/O General-purpose digital I/O
I SWDIO
O SPI_OUT
O CLK_32K





8





DIO9

 I/O General-purpose digital I/O
I SWCLK
I SPI_IN
O XO16/32M







9







DIO8

 I/O General-purpose digital I/O
O UART_TXD
I/O SPI_CLK
I PDM_DATA









10









DIO7/BOOT



I/O

Bootloader pin/

General purpose digital
I UART_CTS
I/O I2C2_DAT
O PDM_CLK





11





DIO6

 I/O General purpose digital I/O
O UART_RTS
I/O I2C2_CLK
I PDM_DATA







12







DIO5

 I/O General purpose digital I/O
O UART_TXD
I/O I2C2_DAT
O PWM1







13







DIO4

 I/O General purpose digital I/O
I UART_RXD
I/O I2C2_CLK
O PWM0





14





DIO3

 I/O General purpose digital I/O
O PWM1
I SPI_IN







15







DIO2

 I/O General purpose digital I/O
O PWM0
O SPI_OUT
O PDM_CLK







16







DIO1

 I/O General purpose digital I/O
O UART_RTS
I/O SPI_CS1
I PDM_DATA







17







DIO0

 I/O General purpose digital I/O
I UART_CTS
I/O SPI_CLK
O CPUCLK







18







ANATEST0/DIO14

 I/O Analog output/ General purpose digital
I/O I2C1_CLK
I/O SPI_CLK
19 ADC1 I ADC input 1
20 ADC2 I ADC input 2

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A 2

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A 3

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A 4

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A 5

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A 6

ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A 7
ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A 8
ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A 9
ST BLUENRG-2 RTS Module Wireless Bluetooth Module BLE232SA-A 10
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
