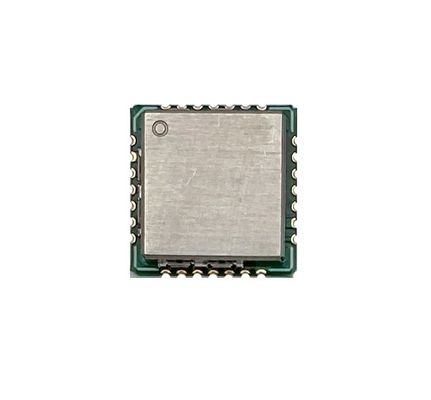

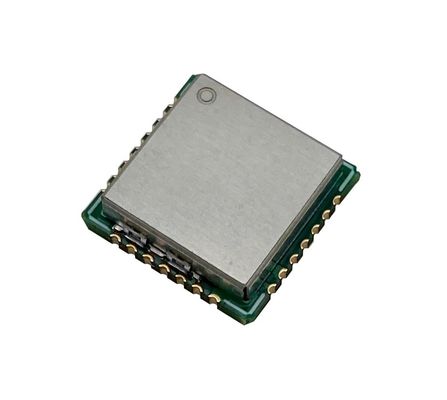

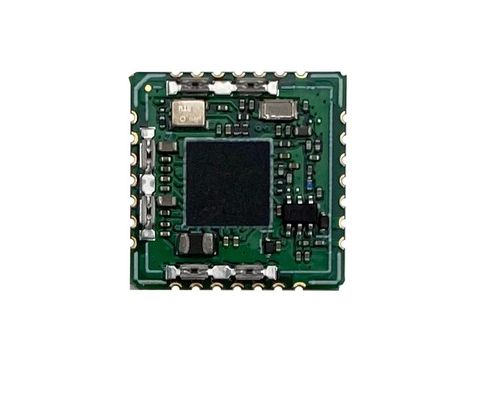

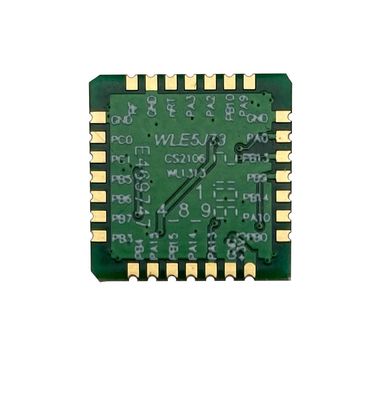

ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module

ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module
ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module

Large Image :  ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LRW32NA-C
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD5.5$ Per Piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module

Description
Chipset: ST-STM32WLE Application: IoT
Size: 13*13*2.8mm Operating Temperature: Re: -20 - 70℃
Operating Voltage: 2.5-3.7V TX Power: 20dBm
RX Sensitivity: -140dBm Sleep Current Consumption: 2μA
High Light:

Iot Lora Gateway Module

,

ST STM32WLE Lora Gateway Module

,

20dBm Lora Long Range Module

ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 0

Iot Industrial Solution Small Size Wearable Cansec Wireless Receiver Module St-Stm32Wle Iot Lora Gateway Module



Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.7
V
Operating Temperature
-20
-
70
°C
Current
Consumption
Rest
-
2

uA
Receive
-
12.5

mA
Transmit Mode
-
120

mA
TX Power
-

20
dBm
RX Sensitivity
-
-140

dBm



Iot Industrial Solution Small Size Wearable Cansec Wireless Receiver Module St-Stm32Wle Iot Lora Gateway Module



Feature

- LoRa spread spectrum modulation technology

- Receive sensitivity as low as -141dBm

- Excellent resistance to blocking



Description

1. The LRW32 long-range wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant LPWAN radio solution: LoRa® (only available in STM32WLE5xx), (G)FSK, (G)MSK, and BPSK.
2. The devices embed high-speed memories (Flash memory up to 256 Kbytes, SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals.
3. The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection and proprietary code readout protection.
4. These devices offer a 12-bit ADC, a 12-bit DAC low-power sample-and-hold, two ultra-low-power comparators associated with a high-accuracy reference voltage generator.

Features
LoRa ™ spread spectrum modulation technology
Receive sensitivity as low as -141 dBm
Excellent resistance to blocking
Supports preamble detection
Supports half-duplex SPI communication
Programmable bit rate up to 300Kbps
Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
Supports automatic RF signal detection, CAD mode and ultra high speed AFC
Packets with CRC, up to 256 bytes
Small package with double volume stamps

ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 1

ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 2

ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 3
ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 4

ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 5

ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 6

ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 7

ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 8


ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 9
ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 10
ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 11
ST STM32WLE IoT LoRa Gateway Module 20dBm Lora Long Range Module 12
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
