16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C

16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C
16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C

Large Image :  16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3235SA-C
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.5$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C

Description

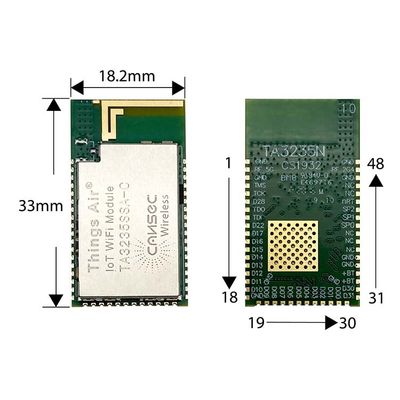

Size: 18.2*33*2.8mm TX Power: 16.5dBm
RX Sensitivity: -95dBm TX Current 2.4GHz: 380mA
RX Current 2.4GHz: 77mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: CC3235
TX Current 5G: 470mA RX Current 5GHz: 87mA
Highlight:

16.5dBm IoT Wifi Module

,

1uA IoT Wifi Module

,

CC3235 5Ghz Wifi Module

16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 0

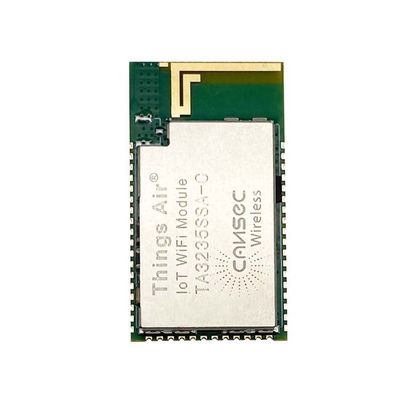

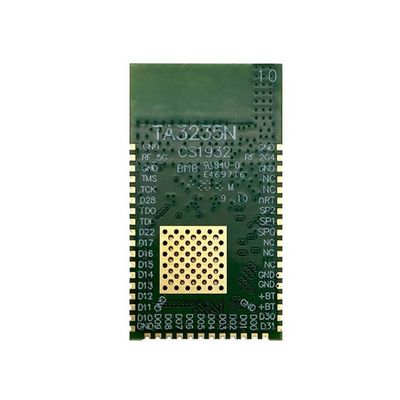

TA3235SA-C WiFi module with TI CC3235 chipset

Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
2.4G
-
-
5.2
uA
5G
-
-
5.2
uA
Receive mode
(MCU active)
2.4G
-
-
77
mA
5G
-
-
87
mA
Transmit Mode(CW)
( at +18 dBm ,+3.3V)
2.4G
-
-
380
mA
5G

-
470
mA
TX Power(CW)
2.4G
-
16.5
18
dBm

5G
-
14.5
18
dBm
RX Sensitivity
2.4G (at 1 DSSS)
-
-
-94.5
dBm

5G (at 6 OFDM)
-
-
-89
dBm



TA3235SA-C WiFi module with TI CC3235 chipset

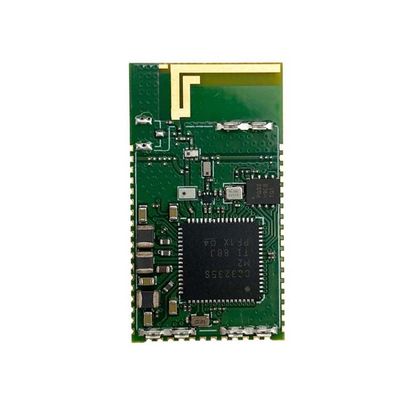

The TA3235 is a WIFI module. The integrated hardware solution comprises the CC3235S/CC3235SF Wi-Fi wireless MCU. Customers may reuse the reference design to design their own Board. The software and hardware design resources reduce engineering efforts, shorten time to market, and help developers and customers release their products with cloud connectivity features faster.

16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 1

16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 2

16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 3

16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 416.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 5

16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 6

16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 716.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 816.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 916.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 10

16.5dBm 1uA IoT Wifi Module CC3235 5Ghz Wifi Module TA3235SA-C 11
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
