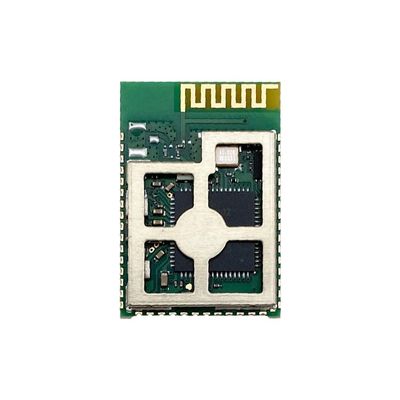

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver
Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver

Large Image :  Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1278NA-G
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 3.55$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver

Description
Chipset: Semtech SX1278 Application: IoT
Size: 16*17*3mm Operating Temperature: -20 - 70℃
Operating Voltage: 2.7-3.6V TX Power: 20dBm
RX Sensitivity: -139dBm Sleep Current Consumption: 0.1μA
High Light:

fcc long range lora module

,

bluetooth long range lora module

,

ce lora bluetooth module

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 0

FCC CE Smart Home Wifi IoT Module Or IoT Devices Cansec Ta3200R1D Ti CC3200 Wifi Module Transceiver Best Seller



Parameter
Min
Typ
Max
Unit
Operating Voltage
2.7
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
0.1
-
uA
Receive mode
-
11.7
-
mA
Transmit Mode (RFOP =+20dBm, on PA_BOOST)
-
117
-
mA
TX Power (For Carrier)
-
18
20
dBm
RX Sensitivity (For Lora Modulation)
-
-
-139
dBm



FCC CE Smart Home Wifi IoT Module Or IoT Devices Cansec Ta3200R1D Ti CC3200 Wifi Module Transceiver Best Seller



1. The LR1278NA-G module is designed based on SX1278. The SX1278 incorporates the LoRaTM spread spectrum modem which is capable of achieving significantly longer range than existing systems based on FSK or OOK modulation.

2. At maximum data rates of LoRaTM the sensitivity is 8dB better than FSK, but using a low cost bill of materials with a 20ppm XTAL LoRaTM can improve receiver sensitivity by more than 20dB compared to FSK.
3. LoRaTM also provides significant advances in selectivity and blocking performance, further improving communication reliability.
4. For maximum flexibility the user may decide on the spread spectrum modulation bandwidth (BW), spreading factor (SF) and error correction rate (CR). Another benefit of the spread modulation is that each spreading factor is orthogonal - thus multiple transmitted signals can occupy the same channel without interfering. This also permits simple coexistence with existing FSK based systems. Standard GFSK, FSK, OOK, and GMSK modulation is also provided to allow compatibility with existing systems or standards such as wireless MBUS and IEEE 802.15.4g.

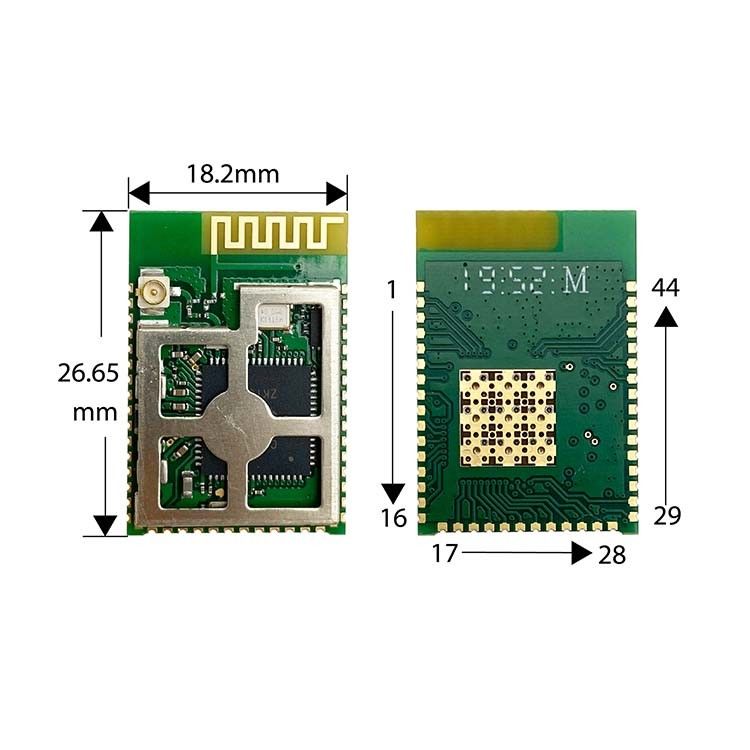

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 1

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 2Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 3

​

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 4

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 5

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 6

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 7

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 8

Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 9
Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 10
Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 11
Bluetooth Fcc Ce Wifi Long Range Lora Module Transceiver 12
FAQ

Q1: Are you a factory or trade company?

A1: We are a professional factory with 25 years experience.

Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.

Tag:

20dBm LoRa Module,

Semtech SX1278 LoRa Module,

20dBm Semtech SX1278
