LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home

LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home
LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home

Large Image :  LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1278NA-G
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 3.55$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home

Description
Chipset: Semtech SX1278 Application: IoT
Size: 16*17*3mm Operating Temperature: -20 - 70℃
Operating Voltage: 2.7-3.6V TX Power: 20dBm
RX Sensitivity: -139dBm Sleep Current Consumption: 0.1μA
High Light:

lora module sx1278

,

2.4ghz lora module sx1278

,

smart home lora module sx1278

LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 0

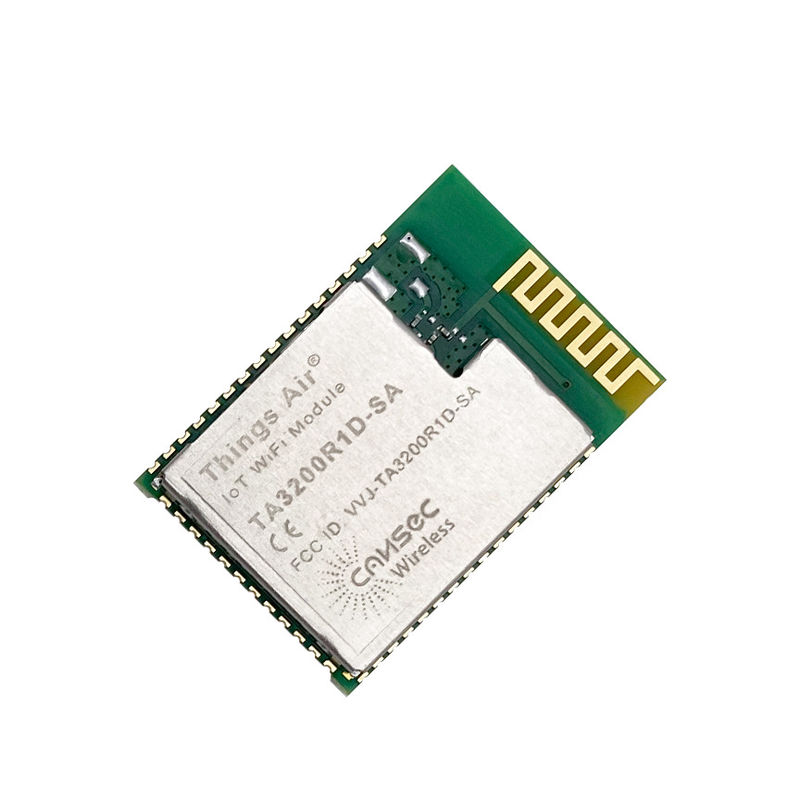

2.4Ghz Wireless Transceiver Wifi Switch Module Cansec Ta3200R1D Ti CC3200 Wireless Wifi Module For Smart Home



Parameter
Min
Typ
Max
Unit
Operating Voltage
2.7
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
0.1
-
uA
Receive mode
-
11.7
-
mA
Transmit Mode (RFOP =+20dBm, on PA_BOOST)
-
117
-
mA
TX Power (For Carrier)
-
18
20
dBm
RX Sensitivity (For Lora Modulation)
-
-
-139
dBm



2.4Ghz Wireless Transceiver Wifi Switch Module Cansec Ta3200R1D Ti CC3200 Wireless Wifi Module For Smart Home



1. The LR1278NA-G module is designed based on SX1278. The SX1278 incorporates the LoRaTM spread spectrum modem which is capable of achieving significantly longer range than existing systems based on FSK or OOK modulation.

2. At maximum data rates of LoRaTM the sensitivity is 8dB better than FSK, but using a low cost bill of materials with a 20ppm XTAL LoRaTM can improve receiver sensitivity by more than 20dB compared to FSK.
3. LoRaTM also provides significant advances in selectivity and blocking performance, further improving communication reliability.
4. For maximum flexibility the user may decide on the spread spectrum modulation bandwidth (BW), spreading factor (SF) and error correction rate (CR). Another benefit of the spread modulation is that each spreading factor is orthogonal - thus multiple transmitted signals can occupy the same channel without interfering. This also permits simple coexistence with existing FSK based systems. Standard GFSK, FSK, OOK, and GMSK modulation is also provided to allow compatibility with existing systems or standards such as wireless MBUS and IEEE 802.15.4g.

LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 1

LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 2LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 3

​

LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 4

LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 5

LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 6

LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 7

LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 8

LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 9
LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 10
LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 11
LR1278NA-G 2.4ghz Lora Module Sx1278 For Smart Home 12
FAQ

Q1: Are you a factory or trade company?

A1: We are a professional factory with 25 years experience.

Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
