Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming

Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming
Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming

Large Image :  Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1268NA-G
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 3.55$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming

Description
Chipset: Semtech SX1268 Application: IoT
Size: 16*17*3mm Operating Temperature: -20 - 70℃
Operating Voltage: 2.7-3.6V TX Power: 20dBm
RX Sensitivity: -139dBm Sleep Current Consumption: 0.1μA
High Light:

smart sx1278 433mhz lora module

,

sx1278 433mhz lora module

,

433 mhz lora module

Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming 0

Cansec LR1268Na-G SX1268 433Mhz Wireless LoRa Transmitter- Receiver Smart IoT Module 20dBm For Smart City Farming



Parameter
Min
Typ
Max
Unit
Operating Voltage
2.7
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
0.1
-
uA
Receive mode
-
11.7
-
mA
Transmit Mode (RFOP =+20dBm, on PA_BOOST)
-
117
-
mA
TX Power (For Carrier)
-
18
20
dBm
RX Sensitivity (For Lora Modulation)
-
-
-139
dBm



Cansec LR1268Na-G SX1268 433Mhz Wireless LoRa Transmitter- Receiver Smart IoT Module 20dBm For Smart City Farming

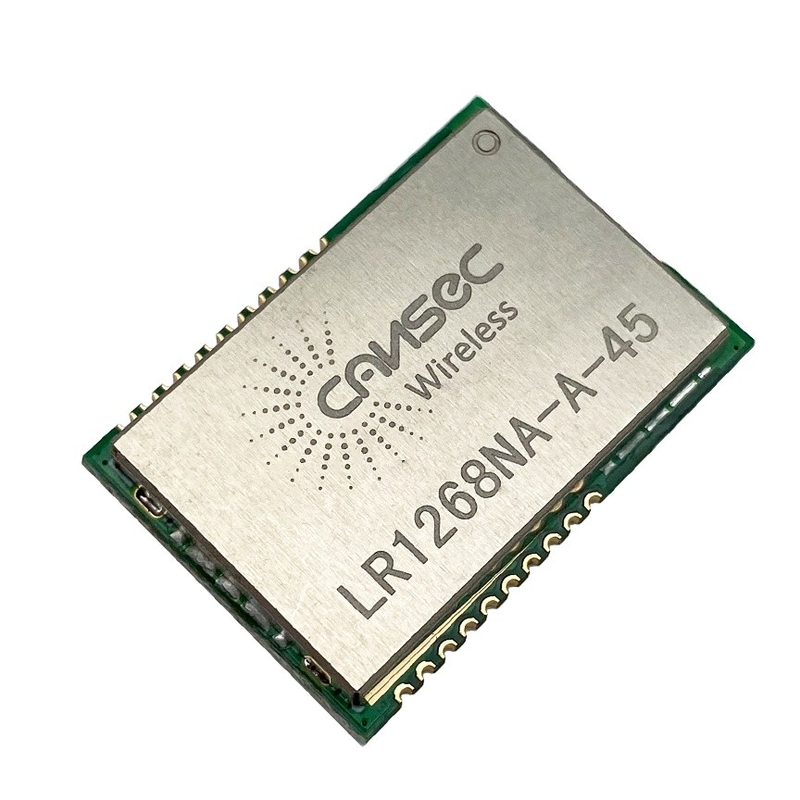

The LR1268NA-G module is designed based on SX1268. The SX1268 incorporates the LoRaTM spread spectrum modem which is capable of achieving significantly longer range than existing systems based on FSK or OOK modulation.

For maximum flexibility the user may decide on the spread spectrum modulation bandwidth (BW), spreading factor (SF) and error correction rate (CR). Another benefit of the spread modulation is that each spreading factor is orthogonal - thus multiple transmitted signals can occupy the same channel without interfering. This also permits simple coexistence with existing FSK based systems. Standard GFSK, FSK, OOK, and GMSK modulation is also provided to allow compatibility with existing systems or standards such as wireless MBUS and IEEE 802.15.4g.



Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming 1

​

Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming 2

Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming 3

Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming 4

Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming 5

Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming 6

Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming 7
Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming 8
Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming 9
Cansec Lr1278na-G Sx1268 433mhz Lora Module For Smart City Farming 10
FAQ

Q1: Are you a factory or trade company?

A1: We are a professional factory with 28 years experience.

Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
