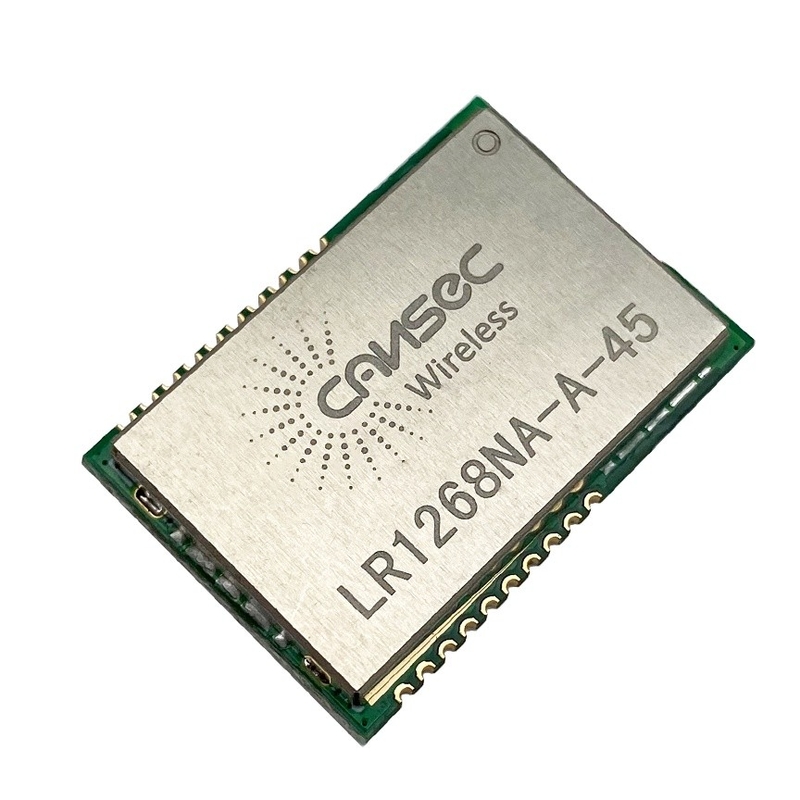

Wireless 433mhz Lora Module Street Light Water Meter Use

Wireless 433mhz Lora Module Street Light Water Meter Use
Wireless 433mhz Lora Module Street Light Water Meter Use

Large Image :  Wireless 433mhz Lora Module Street Light Water Meter Use

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1268NA-G
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 3.55$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

Wireless 433mhz Lora Module Street Light Water Meter Use

Description
Chipset: Semtech SX1268 Application: IoT
Size: 16*17*3mm Operating Temperature: -20 - 70℃
Operating Voltage: 2.7-3.6V TX Power: 20dBm
RX Sensitivity: -139dBm Sleep Current Consumption: 0.1μA
Highlight:

street light 433mhz lora module

,

wireless 433mhz lora module

,

module lora sx1278 433mhz



street light water meter use cansec wireless iot module small size lr1268na-g 433mhz lora sx1268 long range rf wireless

Wireless 433mhz Lora Module Street Light Water Meter Use 0

Street Light Water Meter Use Cansec Wireless IoT Module Small Size LR1268Na-G 433Mhz LoRa SX1268 Long Range RF Wireless Module



Parameter
Min
Typ
Max
Unit
Operating Voltage
2.7
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
0.1
-
uA
Receive mode
-
11.7
-
mA
Transmit Mode (RFOP =+20dBm, on PA_BOOST)
-
117
-
mA
TX Power (For Carrier)
-
18
20
dBm
RX Sensitivity (For Lora Modulation)
-
-
-139
dBm



Street Light Water Meter Use Cansec Wireless IoT Module Small Size LR1268Na-G 433Mhz LoRa SX1268 Long Range RF Wireless Module



At maximum data rates of LoRaTM the sensitivity is 8dB better than FSK, but using a low cost bill of materials with a 20ppm XTAL LoRaTM can improve receiver sensitivity by more than 20dB compared to FSK.

For maximum flexibility the user may decide on the spread spectrum modulation bandwidth (BW), spreading factor (SF) and error correction rate (CR). Another benefit of the spread modulation is that each spreading factor is orthogonal - thus multiple transmitted signals can occupy the same channel without interfering. This also permits simple coexistence with existing FSK based systems. Standard GFSK, FSK, OOK, and GMSK modulation is also provided to allow compatibility with existing systems or standards such as wireless MBUS and IEEE 802.15.4g.



Wireless 433mhz Lora Module Street Light Water Meter Use 1

​

Wireless 433mhz Lora Module Street Light Water Meter Use 2

Wireless 433mhz Lora Module Street Light Water Meter Use 3

Wireless 433mhz Lora Module Street Light Water Meter Use 4

Wireless 433mhz Lora Module Street Light Water Meter Use 5

Wireless 433mhz Lora Module Street Light Water Meter Use 6

Wireless 433mhz Lora Module Street Light Water Meter Use 7
Wireless 433mhz Lora Module Street Light Water Meter Use 8
Wireless 433mhz Lora Module Street Light Water Meter Use 9
Wireless 433mhz Lora Module Street Light Water Meter Use 10
FAQ

Q1: Are you a factory or trade company?

A1: We are a professional factory with 28 years experience.

Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
