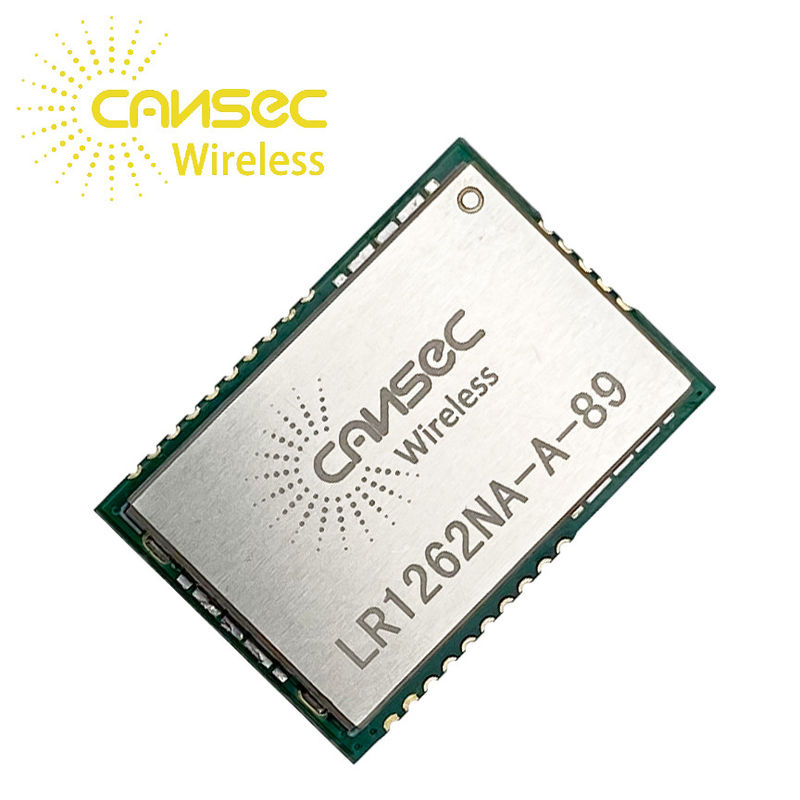

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A

Certification
China Beijing JiaAn Electronics Technology Co., Ltd., certification
China Beijing JiaAn Electronics Technology Co., Ltd., certification
Customer Reviews
BEA Inc. receives great customer service from the entire Cansec team. We appreciate the prompt responses and feedback to our questions and enquiries. Cansec immediately responds and tries to fix or improve any complaints or issues that we may have.

—— BEA Inc.

Thanks for JiaAn's cooperation and support as always, and hope to continue to maintain close cooperation and good collaborative work in the follow-up work.

—— Jingdong health (JDH)

Thank you for your valuable cooperation for many years.

—— UDEA

I'm Online Chat Now

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A
20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A

Large Image :  20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1262NA-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 4.10$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5~8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A

Description
Size:: 17*24.3*3.4mm TX Power: 21dBm
RX Sensitivity: -148dBm Distance: 5.7km
High Light:

SX1262 LoRa 915Mhz Module

,

20dBm LoRa 915Mhz Module

,

Cansec LR1262NA-A

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 0

IoT Modul 20dBm Cansec LR1262NA-A Semtech-SX1262 Wide Frequency Option Wireless Module Transmission Long Range LoRa 915Mhz

Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.7
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
1.5
-
uA
Receive mode(@DCDC mode)
-
4.9
-
mA
Transmit Mode
-
120
-
mA
TX Power (For Carrier)
-
20.5
21
dBm
RX Sensitivity (For Lora Modulation)
-
-
-148
dBm
Distance
5.7K
m



IoT Modul 20dBm Cansec LR1262NA-A Semtech-SX1262 Wide Frequency Option Wireless Module Transmission Long Range LoRa 915Mhz

The LR1262 module is designed based on SX1262. SX1262 sub-GHz radio transceivers are ideal for long range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.
The devices are designed to comply with the physical layer requirements of the LoRaWAN™ specification released by the LoRa Alliance™.

Applications
Smart meters
Supply chain and logistics
Building automation
Agricultural sensors
Smart cities
Retail store sensors
Asset tracking
Street lights
Parking sensors
Environmental sensors
Healthcare
Safety and security sensors
Remote control applications

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 1

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 2



20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 3

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 4



20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 5

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 6

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 7

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 8

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 9

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 10

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 11

20dBm SX1262 LoRa 915Mhz Module Semtech Cansec LR1262NA-A 12

FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
