IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water
IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water

Large Image :  IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1262NA-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 4.10$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5~8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water

Description
Size:: 17*24.3*3.4mm TX Power: 21dBm
RX Sensitivity: -148dBm Distance: 5.7km
High Light:

IoT Control LoRa 915Mhz Module

,

LoRa 915Mhz Module Semtech SX1262

,

Semtech LoRa SX1262 Module

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 0

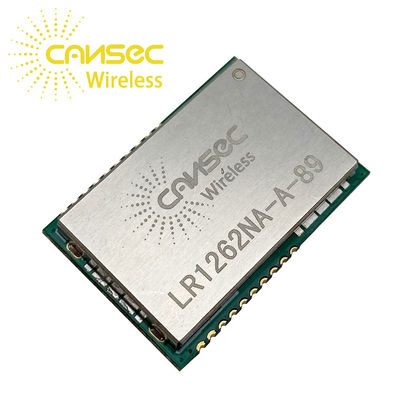

IoT Control Module 915Mhz Cansec LR1262NA-A Semtech-SX1262 Wireless Receiver LoRa Module Rm For Smart City Farming Water Meter

Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.7
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
1.5
-
uA
Receive mode(@DCDC mode)
-
4.9
-
mA
Transmit Mode
-
120
-
mA
TX Power (For Carrier)
-
20.5
21
dBm
RX Sensitivity (For Lora Modulation)
-
-
-148
dBm
Distance
5.7K
m



IoT Control Module 915Mhz Cansec LR1262NA-A Semtech-SX1262 Wireless Receiver LoRa Module Rm For Smart City Farming Water Meter

The LR1262 module is designed based on SX1262. SX1262 sub-GHz radio transceivers are ideal for long range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.



Features
LoRa and FSK Modem
170 dB maximum link budget
Wide-Supply Voltage: VBAT:1.8 to 3.6V
RF output up to +21 dBm
Programmable bit rate up to 62.5 kbps LoRa and 300 kbps FSK
Integrated DC-DC converter and LDO
High sensitivity: down to -148 dBm
88 dB blocking immunity at 1 MHz offset
Co-channel rejection of 19 dB in LoRa mode
Fully integrated synthesizer with a resolution of 61 Hz
FSK, GFSK, MSK, GMSK and LoRa modulation
Built-in bit synchronizer for clock recovery
Automatic Channel Activity Detection (CAD) with ultra-fast AFC
Regular crystals and TXCO crystals are optional
Preamble detection
Package and Operating Conditions:
3.4 mm Pitch, 17 mm×24.3mm Stamp Package for Easy Assembly and Low-Cost PCB Design
Operating Temperature Range: -20℃ to +70℃


IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 1

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 2



IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 3

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 4



IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 5

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 6

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 7

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 8

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 9

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 10

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 11

IoT Control LoRa 915Mhz Module Semtech SX1262 For Smart City Farming Water 12

FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
