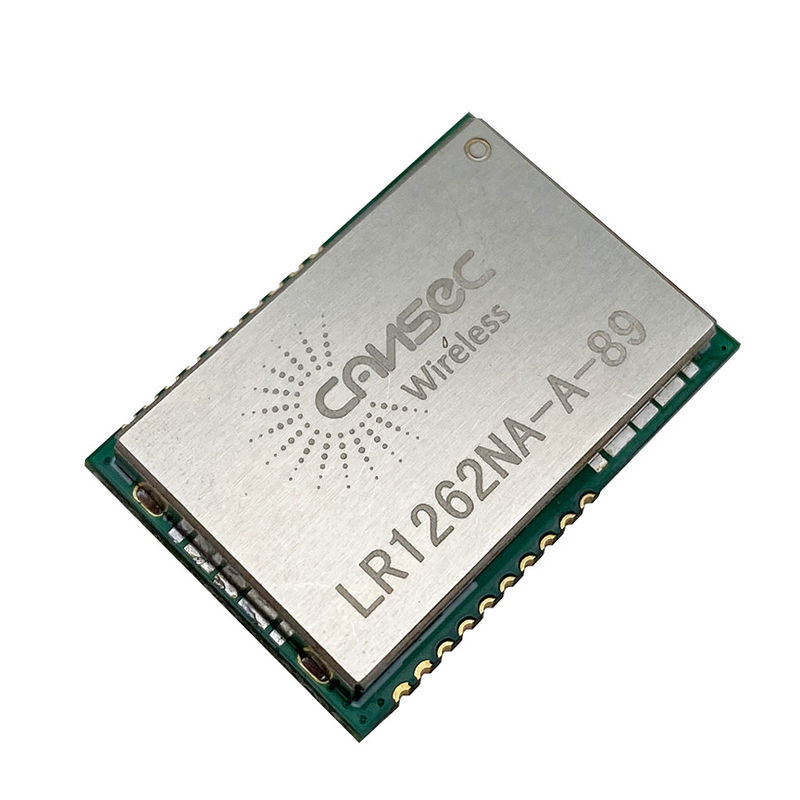

Semtech LoRa Module SX1262 Long Range RF Transceiver Module

Semtech LoRa Module SX1262 Long Range RF Transceiver Module
Semtech LoRa Module SX1262 Long Range RF Transceiver Module

Large Image :  Semtech LoRa Module SX1262 Long Range RF Transceiver Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1262NA-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 4.10$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5~8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Semtech LoRa Module SX1262 Long Range RF Transceiver Module

Description
Size:: 17*24.3*3.4mm TX Power: 21dBm
RX Sensitivity: -148dBm Distance: 5.7km
High Light:

Semtech LoRa Module

,

SX1262 Long Range RF Transceiver Module

,

LoRa Module SX1262

Semtech LoRa Module SX1262 Long Range RF Transceiver Module 0

Long Range High-Performance RF Transceiver Module IoT Industrial Solution Cansec LR1262NA-A Semtech-SX1262 LoRa Module 915 Mhz

Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.7
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
1.5
-
uA
Receive mode(@DCDC mode)
-
4.9
-
mA
Transmit Mode
-
120
-
mA
TX Power (For Carrier)
-
20.5
21
dBm
RX Sensitivity (For Lora Modulation)
-
-
-148
dBm
Distance
5.7K
m



Long Range High Performance RF Transceiver Module IoT Industrial Solution Cansec LR1262NA-A Semtech-SX1262 LoRa Module 915 Mhz

The LR1262 module is designed based on SX1262. SX1262 sub-GHz radio transceivers are ideal for long-range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.
The radio is suitable for systems targeting compliance with radio regulations including but not limited to ETSI EN 300 220, FCC CFR 47 Part 15, China regulatory requirements and the Japanese ARIB T-108. Continuous frequency coverage from 150 MHz to 960 MHz allows the support of all major sub-GHz ISM bands around the world.

Applications
Smart meters
Supply chain and logistics
Building automation
Agricultural sensors
Smart cities
Retail store sensors
Asset tracking
Street lights
Parking sensors
Environmental sensors
Healthcare
Safety and security sensors
Remote control applications

Semtech LoRa Module SX1262 Long Range RF Transceiver Module 1

Semtech LoRa Module SX1262 Long Range RF Transceiver Module 2



Semtech LoRa Module SX1262 Long Range RF Transceiver Module 3

Semtech LoRa Module SX1262 Long Range RF Transceiver Module 4

Features
LoRa and FSK Modem
170 dB maximum link budget
Wide-Supply Voltage: VBAT:1.8 to 3.6V
RF output up to +21 dBm
Programmable bit rate up to 62.5 kbps LoRa and 300 kbps FSK
Integrated DC-DC converter and LDO
High sensitivity: down to -148 dBm
88 dB blocking immunity at 1 MHz offset
Co-channel rejection of 19 dB in LoRa mode
Fully integrated synthesizer with a resolution of 61 Hz
FSK, GFSK, MSK, GMSK and LoRa modulation
Built-in bit synchronizer for clock recovery
Automatic Channel Activity Detection (CAD) with ultra-fast AFC
Regular crystals and TXCO crystals are optional
Preamble detection
Package and Operating Conditions:
3.4 mm Pitch, 17 mm×24.3mm Stamp Package for Easy Assembly and Low-Cost PCB Design
Operating Temperature Range: -20℃ to +70℃



Semtech LoRa Module SX1262 Long Range RF Transceiver Module 5

Semtech LoRa Module SX1262 Long Range RF Transceiver Module 6

Semtech LoRa Module SX1262 Long Range RF Transceiver Module 7

Semtech LoRa Module SX1262 Long Range RF Transceiver Module 8

Semtech LoRa Module SX1262 Long Range RF Transceiver Module 9

Semtech LoRa Module SX1262 Long Range RF Transceiver Module 10

Semtech LoRa Module SX1262 Long Range RF Transceiver Module 11

Semtech LoRa Module SX1262 Long Range RF Transceiver Module 12
