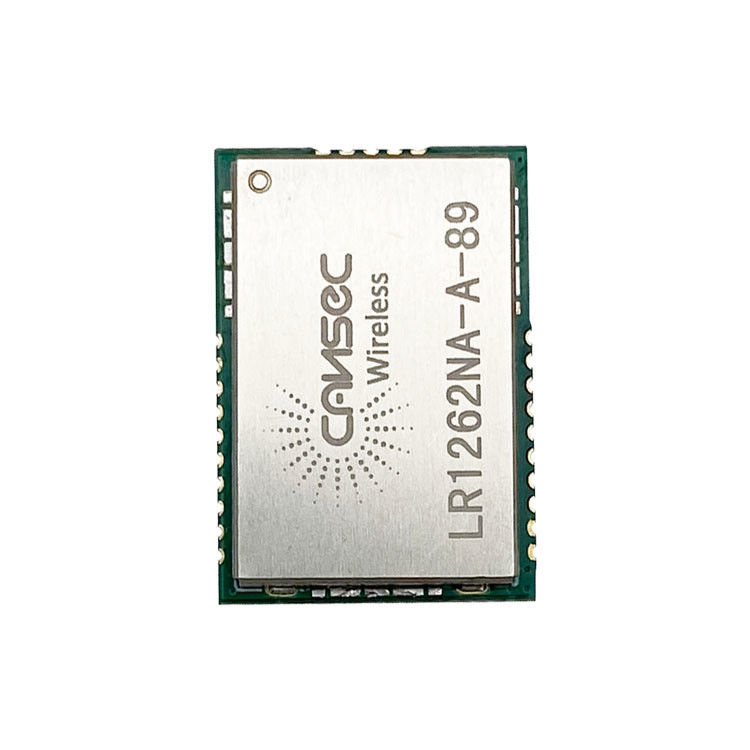

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A
Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A

Large Image :  Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1262NA-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 4.10$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5~8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A

Description
Size:: 17*24.3*3.4mm TX Power: 21dBm
RX Sensitivity: -148dBm Distance: 5.7km
High Light:

Semtech LoRa SX1262 Module

,

Cansec LR1262NA-A

,

21dBm Long Range LoRa module

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 0

Cansec Industry Wireless Transmitter And Receiver Module IoT Solutions LR1262NA-A Semtech-SX1262 LoRa Module Long Range

Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.7
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
1.5
-
uA
Receive mode(@DCDC mode)
-
4.9
-
mA
Transmit Mode
-
120
-
mA
TX Power (For Carrier)
-
20.5
21
dBm
RX Sensitivity (For Lora Modulation)
-
-
-148
dBm
Distance
5.7K
m



Cansec Industry Wireless Transmitter And Receiver Module IoT Solutions LR1262NA-A Semtech-SX1262 LoRa Module Long Range

The LR1262 module is designed based on SX1262. SX1262 sub-GHz radio transceivers are ideal for long range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.
The devices are designed to comply with the physical layer requirements of the LoRaWAN™ specification released by the LoRa Alliance™.


Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 1

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 2



Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 3

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 4



Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 5

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 6

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 7

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 8

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 9

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 10

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 11

Semtech LoRa SX1262 Module Long Range 21dBm Cansec LR1262NA-A 12
