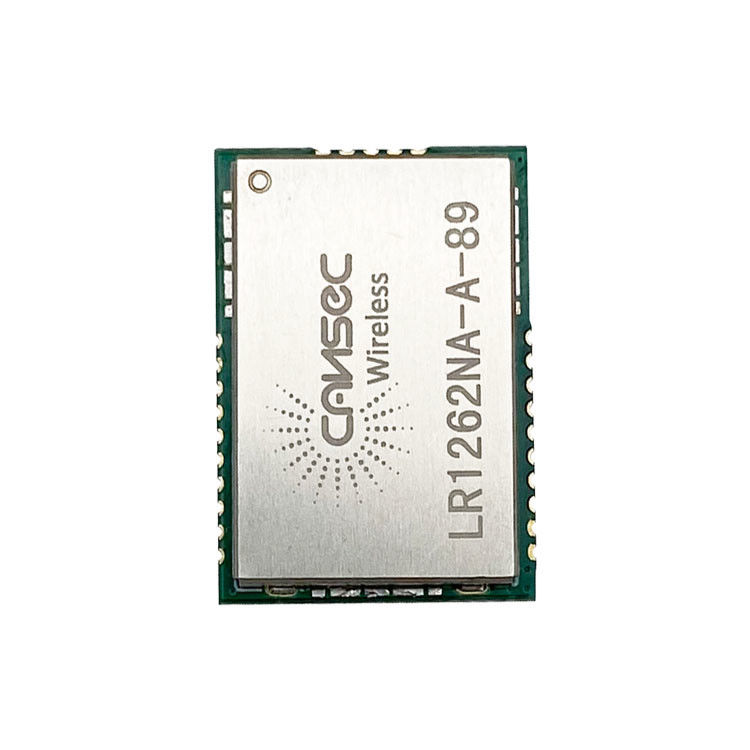

Cansec LR1262NA-A 20dBm LoRa SX1262 Module IoT RF Wireless Receiving

Large Image : Cansec LR1262NA-A 20dBm LoRa SX1262 Module IoT RF Wireless Receiving

Product Details:

Place of Origin:	Beijing
Brand Name:	Cansec Wireless
Model Number:	LR1262NA-A

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD 4.10$ per piece
Packaging Details:	Box for 1000 pieces Package size: 403420 cm Gross weight: 5.000 kg
Delivery Time:	5~8 weeks
Payment Terms:	T/T
Supply Ability:	2000000 pieces per year

Contact Now

Cansec LR1262NA-A 20dBm LoRa SX1262 Module IoT RF Wireless Receiving

Description

Size::

17*24.3*3.4mm

TX Power:

21dBm

RX Sensitivity:

-148dBm

Distance:

5.7km

High Light:

Cansec LR1262NA-A

20dBm LoRa SX1262 Module

IoT LoRa SX1262 Module

Cansec LR1262NA-A 20dBm LoRa SX1262 Module IoT RF Wireless Receiving 0

IoT Control Wide Frequency Option Cansec No Antenna LR1262NA-A 20dBm RF Wireless Receiving Module Semtech-SX1262 LoRa Module

Parameter		Min	Typ	Max	Unit
Operating Voltage		1.8	-	3.7	V
Operating Temperature		-20	-	+70	℃
Current Consumption	Sleep Mode	-	1.5	-	uA
	Receive mode(@DCDC mode)	-	4.9	-	mA
	Transmit Mode	-	120	-	mA
TX Power (For Carrier)		-	20.5	21	dBm
RX Sensitivity (For Lora Modulation)		-	-	-148	dBm
Distance		5.7K			m

IoT Control Wide Frequency Option Cansec No Antenna LR1262NA-A 20dBm RF Wireless Receiving Module Semtech-SX1262 LoRa Module

The radio is suitable for systems targeting compliance with radio regulations including but not limited to ETSI EN 300 220, FCC CFR 47 Part 15, China regulatory requirements and the Japanese ARIB T-108. Continuous frequency coverage from 150 MHz to 960 MHz allows the support of all major sub-GHz ISM bands around the world.

Cansec LR1262NA-A 20dBm LoRa SX1262 Module IoT RF Wireless Receiving 9

Cansec LR1262NA-A 20dBm LoRa SX1262 Module IoT RF Wireless Receiving 10

Cansec LR1262NA-A 20dBm LoRa SX1262 Module IoT RF Wireless Receiving 11

Cansec LR1262NA-A 20dBm LoRa SX1262 Module IoT RF Wireless Receiving 12

FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
