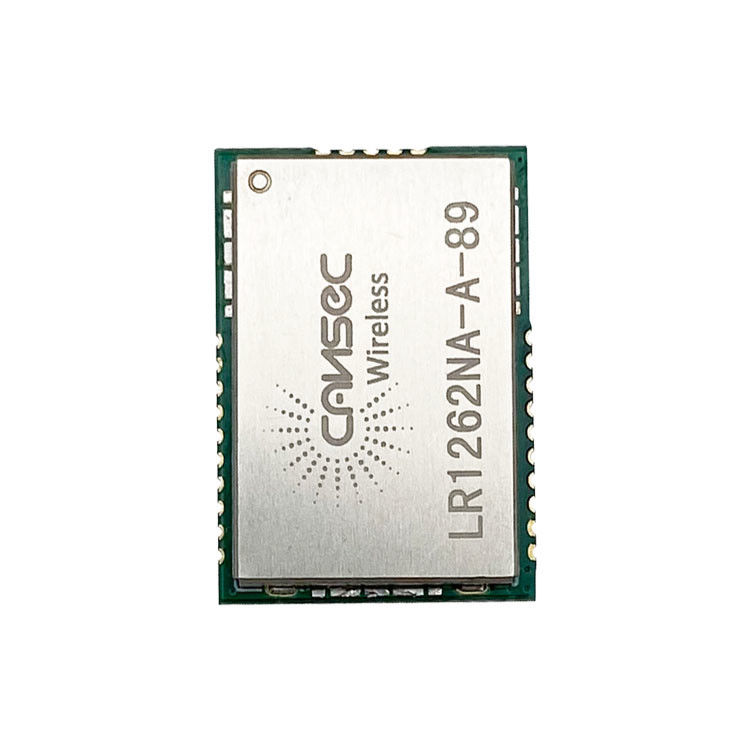

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard
Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard

Large Image :  Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1262NA-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 4.10$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5~8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard

Description
Size:: 17*24.3*3.4mm TX Power: 21dBm
RX Sensitivity: -148dBm Distance: 5.7km
Highlight:

Semtech 1262 LoRa Transceiver Module

,

LoRa Transceiver Module 20dBm

,

20dBm LoRaWAN Module

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 0

Cansec LR1262NA-A Semtech-SX1262 20dBm Wide Frequency Option LoRa Wireless Transceiver No Antenna Module IoT Industrial Solution

Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.7
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
1.5
-
uA
Receive mode(@DCDC mode)
-
4.9
-
mA
Transmit Mode
-
120
-
mA
TX Power (For Carrier)
-
20.5
21
dBm
RX Sensitivity (For Lora Modulation)
-
-
-148
dBm
Distance
5.7K
m



Cansec LR1262NA-A Semtech-SX1262 20dBm Wide Frequency Option LoRa Wireless Transceiver No Antenna Module IoT Industrial Solution

1. The LR1262 module is designed based on SX1262. SX1262 sub-GHz radio transceivers are ideal for long range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 1

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 2



Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 3

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 4



Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 5

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 6

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 7

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 8

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 9

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 10

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 11

Semtech 1262 LoRa Transceiver Module 20dBm LoRaWAN Standard 12

FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
