Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module

Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module
Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module

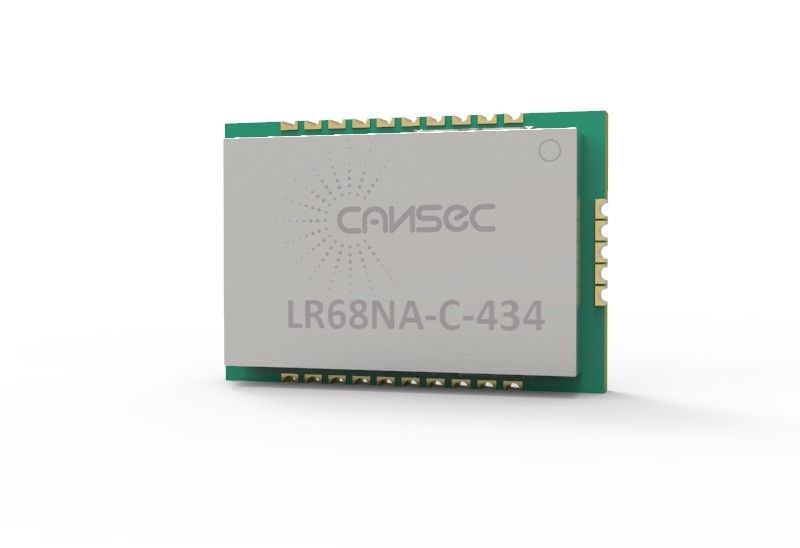

Large Image :  Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: Semtech LLCC68
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 2.95$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module

Description
Chipset: Semtech LLCC68 Application: IoT
Size: 13*19*2.9mm Operating Temperature: -20 - 70℃
Operating Voltage: 1.8-3.7V TX Power: 21dBm
RX Sensitivity: -148dBm Sleep Current Consumption: 0.5μA
Frequency: 434, 868, 915 MHz
High Light:

Semtech LoRa 433Mhz

,

LLCC68 Wifi Transmitter And Receiver Module

,

433Mhz Wifi Transmitter And Receiver Module

Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 0

Cost Effective Cansec LoRa 433Mhz Wireless RF Receiver Transceiver Module LR68Na-C Semtech-Llcc68 LoRa Module IoT Solutions



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.7
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
0.5
1.5
uA
Receive mode
-
4.9
-
mA
Transmit Mode
-
120
-
mA
TX Power (For Carrier)
-
20.5
21
dBm
RX Sensitivity (For Lora Modulation)
-
-
-148
dBm



Cost Effective Cansec LoRa 433Mhz Wireless RF Receiver Transceiver Module LR68Na-C Semtech-Llcc68 LoRa Module IoT Solutions



Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 1



1. The LR68-NA-C module is sub-GHz radio transceivers that are ideal for long-range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.

2. The devices are designed to comply with the physical layer requirements of the LoRaWAN specification released by the LoRa Alliance™.
3. The radio is suitable for systems targeting compliance with radio regulations including but not limited to ETSI EN 300 220, FCC CFR 47 Part 15, China regulatory requirements and the Japanese ARIB T-108. Continuous frequency coverage from 150 MHz to 960 MHz allows the support of all major sub-GHz ISM bands around the world.

Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 2
Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 3


Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 4

Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 5

Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 6

Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 7

Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 8

Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 9
Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 10
Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 11
Semtech LoRa 433Mhz LLCC68 Wifi Transmitter And Receiver Module 12
