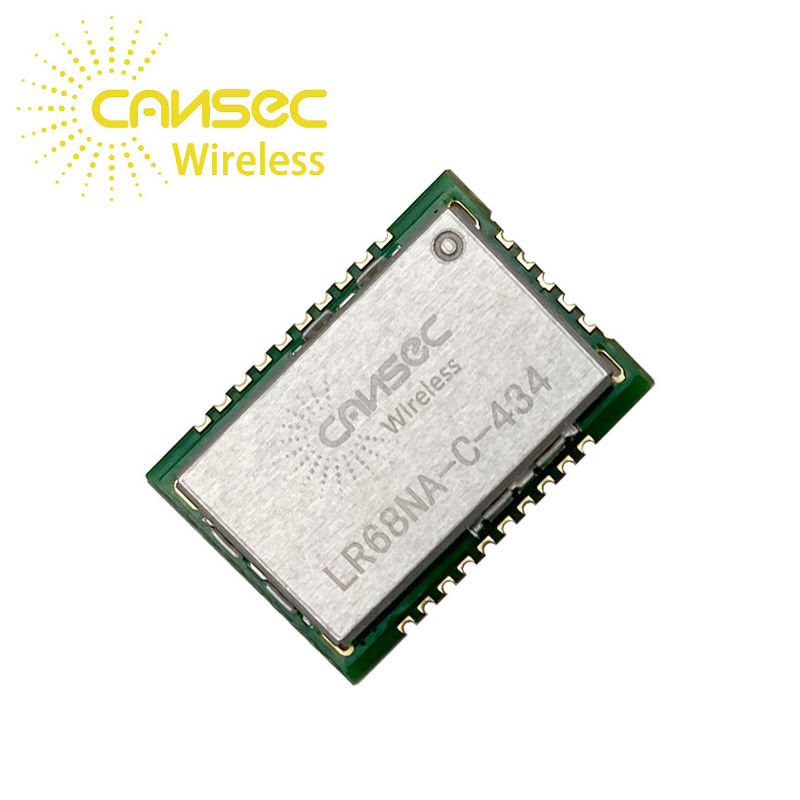

915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming

915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming
915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming

Large Image :  915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: Semtech LLCC68
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 2.95$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming

Description
Chipset: Semtech LLCC68 Application: IoT
Size: 13*19*2.9mm Operating Temperature: -20 - 70℃
Operating Voltage: 1.8-3.7V TX Power: 21dBm
RX Sensitivity: -148dBm Sleep Current Consumption: 0.5μA
Frequency: 434, 868, 915 MHz
High Light:

4.8Km LoRa Semtech Module

,

915MHz LoRa Semtech Module

,

LLCC68 semtech lora module

915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 0

Best Seller Cansec IoT LoRa Computer Development Module LR68Na-C Semtech-Llcc68 4.8Km LoRa Module For Smart City Farming



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.7
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
0.5
1.5
uA
Receive mode
-
4.9
-
mA
Transmit Mode
-
120
-
mA
TX Power (For Carrier)
-
20.5
21
dBm
RX Sensitivity (For Lora Modulation)
-
-
-148
dBm



Best Seller Cansec IoT LoRa Computer Development Module LR68Na-C Semtech-Llcc68 4.8Km LoRa Module For Smart City Farming



915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 1



1. The LR68-NA-C module is sub-GHz radio transceivers that are ideal for long-range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.

2. The devices are designed to comply with the physical layer requirements of the LoRaWAN specification released by the LoRa Alliance™.
3. The radio is suitable for systems targeting compliance with radio regulations including but not limited to ETSI EN 300 220, FCC CFR 47 Part 15, China regulatory requirements and the Japanese ARIB T-108. Continuous frequency coverage from 150 MHz to 960 MHz allows the support of all major sub-GHz ISM bands around the world.

Applications
Smart meters
Supply chain and logistics
Building automation
Agricultural sensors
Smart cities
Retail store sensors
Asset tracking
Street lights
Parking sensors
Environmental sensors
Healthcare
Safety and security sensors
Remote control applications

Architecture
1.Analog Front End: the transmit and receive chains, as well as the data converter interface to ensuing digital blocks. The LR68NA-C transceiver is capable of delivering up to +21 dBm under the battery supply.
2.Digital Modem Bank: a range of modulation options is available in the LR68NA-C:
w LoRa® Rx/Tx, BW = 125 -250 - 500 kHz
w LoRa® SF = 5 - 6 - 7 - 8 - 9 for BW = 125 kHz
w LoRa® SF = 5 - 6 - 7 - 8 - 9 - 10 for BW = 250 kHz
w LoRa® SF = 5 - 6 - 7 - 8 - 9 - 10 - 11 for BW = 500 kHz

915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 2
915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 3


915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 4

915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 5

915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 6

915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 7

915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 8

915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 9
915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 10
915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 11
915MHz 4.8Km LoRa Semtech Module LLCC68 For Smart City Farming 12
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
