20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans

20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans
20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans

Large Image :  20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: Semtech LLCC68
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 2.95$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans

Description
Chipset: Semtech LLCC68 Application: IoT
Size: 13*19*2.9mm Operating Temperature: -20 - 70℃
Operating Voltage: 1.8-3.7V TX Power: 21dBm
RX Sensitivity: -148dBm Sleep Current Consumption: 0.5μA
Frequency: 434, 868, 915 MHz
Highlight:

Cansec Long Range LoRa Module

,

20dBm Long Range LoRa Module

,

LoRa Module 868Mhz

20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 0

Best Seller 20dBm Cansec Industry Logistic Tracking LR68Na-C Semtech-Llcc68 Long Range LoRa Module 868Mhz Wireless Transceiver



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.7
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
0.5
1.5
uA
Receive mode
-
4.9
-
mA
Transmit Mode
-
120
-
mA
TX Power (For Carrier)
-
20.5
21
dBm
RX Sensitivity (For Lora Modulation)
-
-
-148
dBm



Best Seller 20dBm Cansec Industry Logistic Tracking LR68Na-C Semtech-Llcc68 Long Range LoRa Module 868Mhz Wireless Transceiver

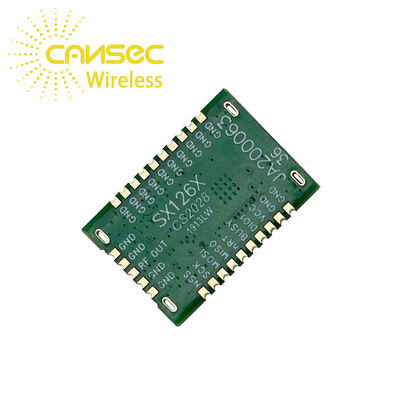

20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 1



1. The LR68-NA-C module is sub-GHz radio transceivers that are ideal for long-range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.

2. The devices are designed to comply with the physical layer requirements of the LoRaWAN specification released by the LoRa Alliance™.

Architecture
1.Analog Front End: the transmit and receive chains, as well as the data converter interface to ensuing digital blocks. The LR68NA-C transceiver is capable of delivering up to +21 dBm under the battery supply.
2.Digital Modem Bank: a range of modulation options is available in the LR68NA-C:
w LoRa® Rx/Tx, BW = 125 -250 - 500 kHz
w LoRa® SF = 5 - 6 - 7 - 8 - 9 for BW = 125 kHz
w LoRa® SF = 5 - 6 - 7 - 8 - 9 - 10 for BW = 250 kHz
w LoRa® SF = 5 - 6 - 7 - 8 - 9 - 10 - 11 for BW = 500 kHz
Features
LoRa and FSK Modem
170 dB maximum link budget
Wide-Supply Voltage: VBAT:1.8 to 3.7V
RF output up to +21 dBm
Programmable bit rate
Integrated DC-DC converter and LDO
High sensitivity: down to -148 dBm
80 dB blocking immunity at 1 MHz offset
Co-channel rejection of 19 dB in LoRa mode
Fully integrated synthesizer with a resolution of 122 Hz
FSK, GFSK, MSK, GMSK and LoRa modulation
Built-in bit synchronizer for clock recovery
Automatic Channel Activity Detection (CAD) with ultra-fast AFC
Preamble detection
Package and Operating Conditions:
3.4 mm Pitch, 17 mm×19mm Stamp Package for Easy Assembly and Low-Cost PCB Design
Operating Temperature Range: -20℃ to
+70℃
20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 2
20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 3


20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 4

20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 5

20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 6

20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 7

20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 8

20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 9
20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 10
20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 11
20dBm Cansec Long Range LoRa Module 868Mhz Wireless Trans 12
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
