IPV4 IPV6 IoT 2.4Ghz 5Ghz Ti CC3235 Module Cansec TA3235SSA-C

Large Image : IPV4 IPV6 IoT 2.4Ghz 5Ghz Ti CC3235 Module Cansec TA3235SSA-C

Product Details:

Place of Origin:	Beijing
Brand Name:	Cansec Wireless
Model Number:	TA3235SA-C

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	USD 7.5$ per piece
Packaging Details:	Box for 1000 pieces Package size: 403420 cm Gross weight: 5.000 kg
Delivery Time:	3~6 weeks
Payment Terms:	T/T
Supply Ability:	2000000 pieces per year

Contact Now

IPV4 IPV6 IoT 2.4Ghz 5Ghz Ti CC3235 Module Cansec TA3235SSA-C

Description

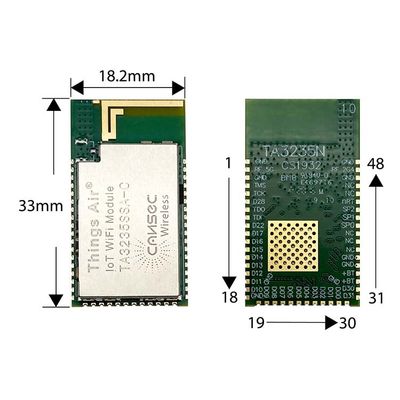

Size:	18.2332.8mm	TX Power:	16.5dBm
RX Sensitivity:	-95dBm	TX Current 2.4GHz:	380mA
RX Current 2.4GHz:	77mA	Standby Current:	1uA
Chipset:	CC3235 By Texas Instruments	TX Current 5G:	470mA
RX Current 5GHz:	87mA	Range:	180m
Standard:	IPV4/ IPV6
High Light:	2.4Ghz 5Ghz Ti CC3235 Module , Ipv4 Ipv6 IoT CC3235 Module , Cansec TA3235SSA-C

IPV4 IPV6 IoT 2.4Ghz 5Ghz Ti CC3235 Module Cansec TA3235SSA-C 0

Rf Transceiver Wifi Switch Module Ipv4 & Ipv6 IoT Solutions OEM 2.4Ghz & 5Ghz Cansec TA3235SSA-C Ti CC3235 Wifi Module

Parameter			Min	Typ	Max	Unit
Operating Voltage			2.5	3.3	3.6	V
Operating Temperature			-20	-	+70	℃
Current Consumption	Sleep Mode	2.4G	-	-	5.2	uA
	Sleep Mode	5G	-	-	5.2	uA
	Receive mode (MCU active)	2.4G	-	-	77	mA
	Receive mode (MCU active)	5G	-	-	87	mA
	Transmit Mode(CW) ( at +18 dBm ,+3.3V)	2.4G	-	-	380	mA
	Transmit Mode(CW) ( at +18 dBm ,+3.3V)	5G		-	470	mA
TX Power(CW)		2.4G	-	16.5	18	dBm
		5G	-	14.5	18	dBm
RX Sensitivity		2.4G (at 1 DSSS)	-	-	-94.5	dBm
		5G (at 6 OFDM)	-	-	-89	dBm

Rf Transceiver Wifi Switch Module Ipv4 & Ipv6 IoT Solutions OEM 2.4Ghz & 5Ghz Cansec TA3235SSA-C Ti CC3235 Wifi Module

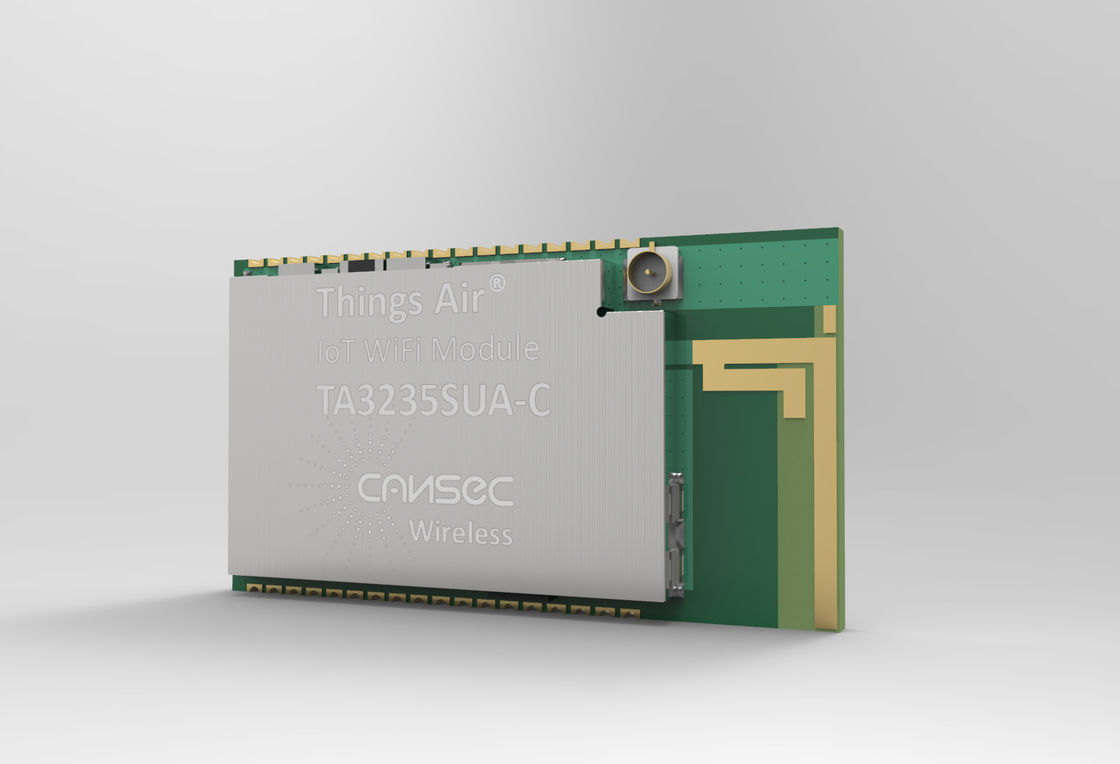

The TA3235 is a WIFI module. The integrated hardware solution comprises the CC3235S/CC3235SF Wi-Fi wireless MCU. Customers may reuse the reference design to design their own Board. The software and hardware design resources reduce engineering efforts, shorten time to market, and help developers and customers release their products with cloud connectivity features faster.

Applications

– Building and Home Automation
– Appliances

– Asset Tracking
– Factory Automation

– Medical and Healthcare
– Grid Infrastructure

about the proper pin multiplexing options, please reference CC3235Sx datasheet from www.TI.com for more details
Rf Transceiver Wifi Switch Module Ipv4 & Ipv6 IoT Solutions OEM 2.4Ghz & 5Ghz Cansec TA3235SSA-C Ti CC3235 Wifi Module

FAQ

Q1: Are you a factory or trade company?

A1: We are a professional factory with 25 years experience.

Q2: Can you accept OEM/ODM?

A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?

A3; Each of our products has undergone quality testing and has two years of free after-sales service.
