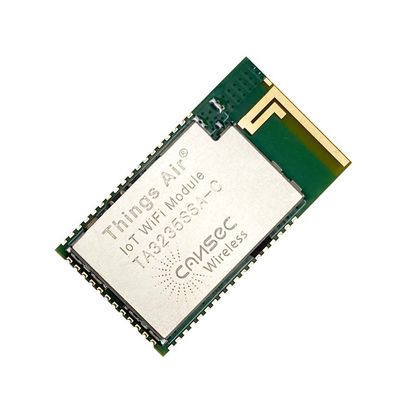

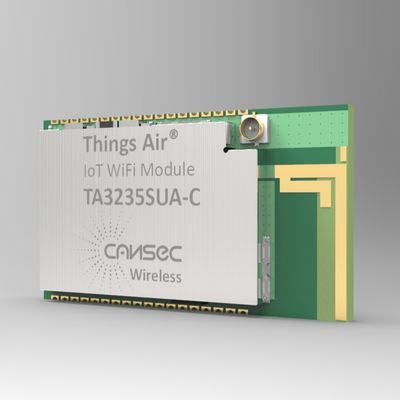

Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C

Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C
Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C

Large Image :  Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3235SA-C
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.5$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C

Description
Size: 18.2*33*2.8mm TX Power: 16.5dBm
RX Sensitivity: -95dBm TX Current 2.4GHz: 380mA
RX Current 2.4GHz: 77mA Standby Current: 1uA
Antenna Type: IPEX Or PCB Antenna Chipset: CC3235
TX Current 5G: 470mA RX Current 5GHz: 87mA
High Light:

Cansec I/O IoT WiFi Module

,

2.4Ghz 5Ghz Wifi Dual Band Module

,

IoT WiFi Module IPEX

Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 0

Cansec IoT I/O Wireless Transceiver Smart Wifi Gateway Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module

Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
2.4G
-
-
5.2
uA
5G
-
-
5.2
uA
Receive mode
(MCU active)
2.4G
-
-
77
mA
5G
-
-
87
mA
Transmit Mode(CW)
( at +18 dBm ,+3.3V)
2.4G
-
-
380
mA
5G

-
470
mA
TX Power(CW)
2.4G
-
16.5
18
dBm

5G
-
14.5
18
dBm
RX Sensitivity
2.4G (at 1 DSSS)
-
-
-94.5
dBm

5G (at 6 OFDM)
-
-
-89
dBm



Cansec IoT I/O Wireless Transceiver Smart Wifi Gateway Module TA3235SSA-C Ti CC3235 2.4Ghz & 5Ghz Wifi Module



The TA3235 is a WIFI module. The integrated hardware solution comprises the CC3235S/CC3235SF Wi-Fi wireless MCU. Customers may reuse the reference design to design their own Board. The software and hardware design resources reduce engineering efforts, shorten time to market, and help developers and customers release their products with cloud connectivity features faster.



Feature Highlight



• Multiple-core architecture, system-on-chip (SoC)

• 802.11 a/b/g/n: 2.4 GHz and 5 GHz

• Multilayered security features, help developers

protect identities, data, and software IP

• Low-Power Modes for battery powered application

• Coexistence with 2.4 GHz Radios

• Operating temperature: –20°C to +70°C

• Application microcontroller subsystem:

– Arm® Cortex®-M4 core at 80 MHz

– User-dedicated memory

– 256KB RAM

– Optional 1MB executable Flash

– Rich set of peripherals and timers

– 27 I/O pins with flexible multiplexing options

 UART, I2S, I2C, SPI, SD, ADC and 8-bit parallel interface

– 8-bit Synchronous Image Interface

– Timers and PWM

– Debug Interfaces: JTAG, cJTAG, and SWD

• Wi-Fi network processor subsystem:

– Wi-Fi® core:

– 802.11 a/b/g/n 2.4 GHz and 5 GHz

– Modes:

– Access Point (AP)

– Station (STA)

– Wi-Fi Direct® (only supported on 2.4 GHz)

– Security:

– WEP

– WPA™/ WPA2™ PSK

– WPA2 Enterprise

– Internet and application protocols:

– HTTPs server, mDNS, DNS-SD, DHCP

– IPv4 and IPv6 TCP/IP stack

– 16 BSD sockets (fully secured TLS v1.2 and

SSL 3.0)

– Built-in power management subsystem:

– Configurable low-power profiles (always,

intermittent, tag)

– Advanced low-power modes

– Integrated DC/DC regulators

• Multilayered security features:

– Separate execution environments

– Networking security

– Device identity and key

– Hardware accelerator cryptographic engines

(AES, DES, SHA/MD5, CRC)

– Application-level security (encryption,

authentication, access control)

– Initial secure programming

– Software tamper detection

– Secure boot

– Certificate signing request (CSR)

– Unique per device key pair

• Application Throughput

– UDP: 16 Mbps

– TCP: 13 Mbps

• Power-Management Subsystem:

– Integrated DC/DC converters support a wide

range of supply voltage:

– VBAT wide-voltage mode: 2.5 V to 3.6 V

– VIO is always tied with VBAT

– Wi-Fi TX Power

– 2.4 GHz: 16.5 dBm at 1 DSSS

– 5 GHz: 14.5 dBm at 6 OFDM

– Wi-Fi RX Sensitivity

– 2.4 GHz: –94.5 dBm at 1 DSSS

– 5 GHz: –89 dBm at 6 OFDM

• Additional Integrated Components

– 40.0 MHz Crystal

– 32.768 kHz Crystal (RTC)

– 32 Mbit SPI Serial Flash

Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 1

Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 2

Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 3

Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 4Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 5

Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 6

Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 7Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 8Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 9Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 10

Cansec I/O IoT WiFi Module IPEX 2.4Ghz 5Ghz Wifi Dual Band Module TA3235SA-C 11
