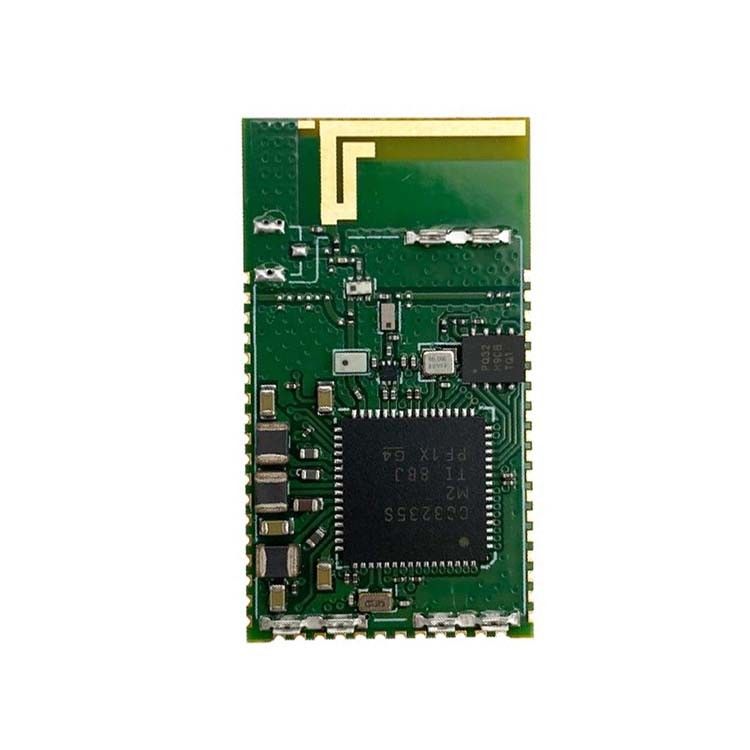

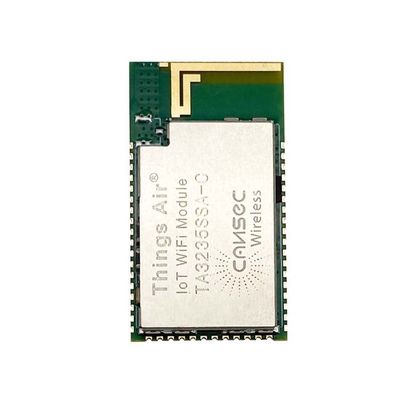

TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text

TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text
TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text

Large Image :  TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3235SA-C
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.5$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text

Description
Size: 18.2*33*2.8mm TX Power: 16.5dBm
RX Sensitivity: -95dBm TX Current 2.4GHz: 380mA
RX Current 2.4GHz: 77mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: CC3235
TX Current 5G: 470mA RX Current 5GHz: 87mA
Highlight:

Rf 2.4 Ghz Wifi Module

,

Ti CC3235 2.4 Ghz Wifi Module

,

TA3235SSA-C Ti CC3235

TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 0

Cansec AT Command Available 2.4 Wifi Transceiver Rf Module TA3235SSA-C Ti CC3235 Wifi Module Full Running Text

Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
2.4G
-
-
5.2
uA
5G
-
-
5.2
uA
Receive mode
(MCU active)
2.4G
-
-
77
mA
5G
-
-
87
mA
Transmit Mode(CW)
( at +18 dBm ,+3.3V)
2.4G
-
-
380
mA
5G

-
470
mA
TX Power(CW)
2.4G
-
16.5
18
dBm

5G
-
14.5
18
dBm
RX Sensitivity
2.4G (at 1 DSSS)
-
-
-94.5
dBm

5G (at 6 OFDM)
-
-
-89
dBm



Cansec AT Command Available 2.4 Wifi Transceiver Rf Module TA3235SSA-C Ti CC3235 Wifi Module Full Running Text

The TA3235 is a WIFI module. The integrated hardware solution comprises the CC3235S/CC3235SF Wi-Fi wireless MCU. Customers may reuse the reference design to design their own Board. The software and hardware design resources reduce engineering efforts, shorten time to market, and help developers and customers release their products with cloud connectivity features faster.



Buy Links↓↓↓

https://www.alibaba.com/product-detail/Cansec-Wireless-TA3235SFSA-C-TI-CC3235SF_1600797862224.html?spm=a2747.product_manager.0.0.427671d2afXoDG



TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 1

TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 2

TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 3

TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 4TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 5

TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 6

TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 7TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 8TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 9TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 10

TA3235SSA-C Ti CC3235 Rf 2.4 Ghz Wifi Module Full Running Text 11
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.

While entertainment centers, computer systems, handheld PDAs, digital cameras and mp3 players, continue to flourish, manufacturers and end-users alike are plagued by the growing complexity of connecting devices. Proprietary cables, protocols and cradles simply complicate things as companies seek a larger market share while buyers seek user-friendly gadgets that are compatible with other products.
