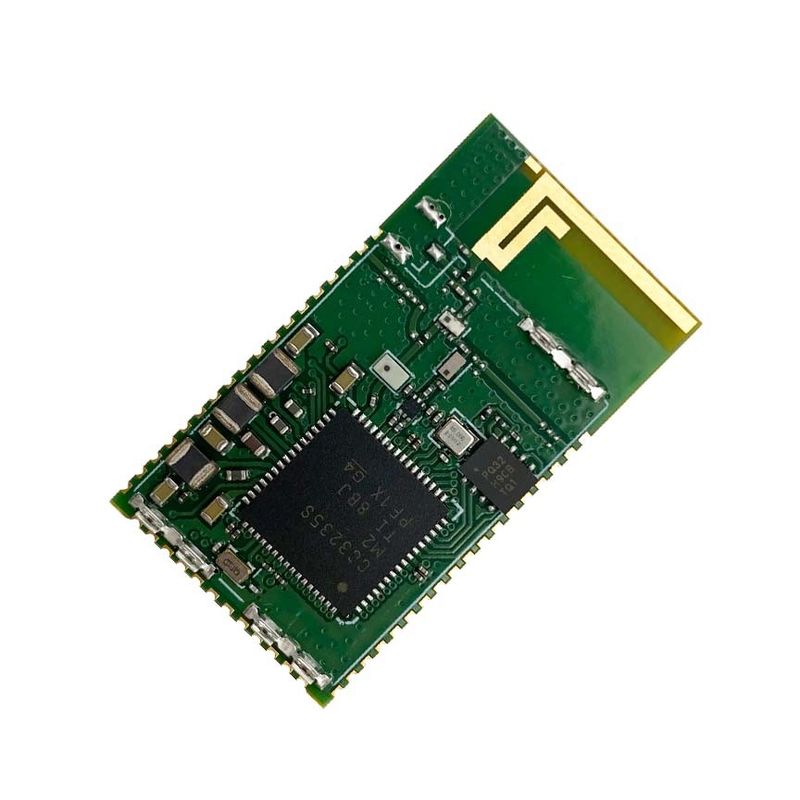

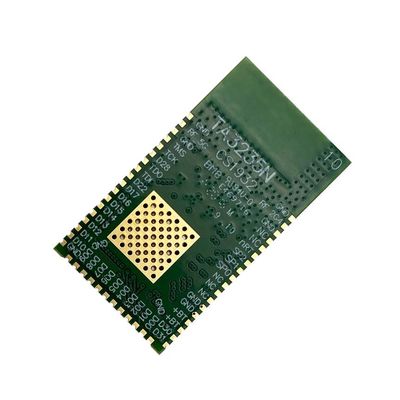

Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G

Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G
Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G

Large Image :  Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3235SA-C
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.5$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G

Description
Size: 18.2*33*2.8mm TX Power: 16.5dBm
RX Sensitivity: -95dBm TX Current 2.4GHz: 380mA
RX Current 2.4GHz: 77mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: CC3235
TX Current 5G: 470mA RX Current 5GHz: 87mA
High Light:

Smart Home CC3235 IoT WiFi Module

,

IoT WiFi Module TA3235SSA-C

,

TA3235SSA-C 2.4G 5G

Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 0

Low Cost Wifi Module Cansec TA3235SSA-C High Performance Ti CC3235 Smart Home Wifi Wireless Transceiver Module

Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
2.4G
-
-
5.2
uA
5G
-
-
5.2
uA
Receive mode
(MCU active)
2.4G
-
-
77
mA
5G
-
-
87
mA
Transmit Mode(CW)
( at +18 dBm ,+3.3V)
2.4G
-
-
380
mA
5G

-
470
mA
TX Power(CW)
2.4G
-
16.5
18
dBm

5G
-
14.5
18
dBm
RX Sensitivity
2.4G (at 1 DSSS)
-
-
-94.5
dBm

5G (at 6 OFDM)
-
-
-89
dBm



Low Cost Wifi Module Cansec TA3235SSA-C High Performance Ti CC3235 Smart Home Wifi Wireless Transceiver Module



The TA3235 is a WIFI module. The integrated hardware solution comprises the CC3235S/CC3235SF Wi-Fi wireless MCU. Customers may reuse the reference design to design their own Board. The software and hardware design resources reduce engineering efforts, shorten time to market, and help developers and customers release their products with cloud connectivity features faster.

Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 1

Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 2

Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 3

Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 4Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 5

Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 6

Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 7Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 8Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 9Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 10

Smart Home CC3235 IoT WiFi Module TA3235SSA-C 2.4G 5G 11
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.


The Bluetooth Mesh Model Specification defines categories of BLE mesh models. Model categories include

  • Foundation models

  • Generic models

  • Sensors

  • Time and scenes

  • Lighting

All devices must implement the foundation models for configuration server and health server. All other models in the model categories are optional and implemented based on the service the BLE device performs.

As described in the Mesh Profile Bluetooth specification, mesh networks operate as managed-flood-based networks. Devices use broadcast channels to transmit messages to other devices, and the messages are relayed forward to other devices extending the range of the original message.
