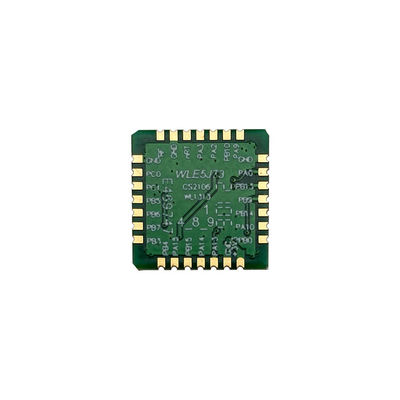

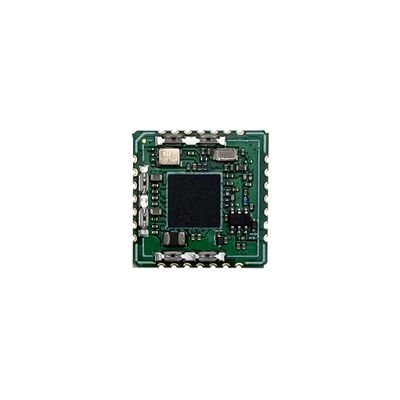

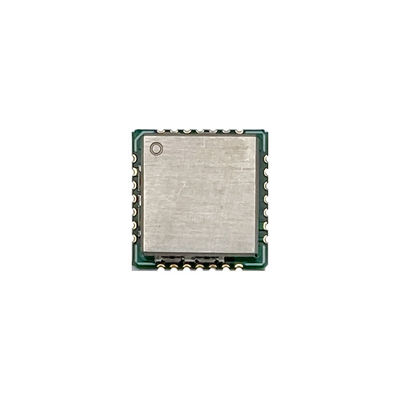

Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle

Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle
Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle

Large Image :  Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LRW32NA-C
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD5.5$ Per Piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle

Description
Chipset: ST-STM32WLE Application: IoT Related Products
Size: 13*13*2.8mm Operating Temperature: Re: -20 - 70℃
Operating Voltage: 2.5-3.7V TX Power: 20dBm
RX Sensitivity: -140dBm Sleep Current Consumption: 2μA
Modulation: Lo-Ra Antenna: Non
High Light:

lorawan lora transceiver module

,

iot lora transceiver module

,

2.5v lora wireless module

Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 0

LoRawan Protocol Wireless IoT Mini LoRa Module Cansec LRW32Na-C St-Stm32Wle LoRa Transmitter Receiver Module For Plan



Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.7
V
Operating Temperature
-20
-
70
°C
Current
Consumption
Rest
-
2

uA
Receive
-
12.5

mA
Transmit Mode
-
120

mA
TX Power
-

20
dBm
RX Sensitivity
-
-140

dBm



LoRawan Protocol Wireless IoT Mini LoRa Module Cansec LRW32Na-C St-Stm32Wle LoRa Transmitter Receiver Module



Feature

- Supports FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes

- Supports automatic RF signal detection, CAD mode and ultra-high-speed AFC

- Packets with CRC, up to 256 bytes

- Small package with double volume stamps



Description

1. The LRW32 long-range wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant LPWAN radio solution: LoRa® (only available in STM32WLE5xx), (G)FSK, (G)MSK, and BPSK.
2. The devices embed high-speed memories (Flash memory up to 256 Kbytes, SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals.
3. The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection and proprietary code readout protection.
4. These devices offer a 12-bit ADC, a 12-bit DAC low-power sample-and-hold, two ultra-low-power comparators associated with a high-accuracy reference voltage generator.
5. The devices embed a low-power RTC with a 32-bit sub-second wakeup counter, one 16-bit single-channel timer, two 16-bit four-channel timers (supporting motor control), one 32-bit four-channel timer and three 16-bit ultra-low-power timers.
6. These devices also embed two DMA controllers (7 channels each), allowing any transfer combination between memory (Flash memory, SRAM1 and SRAM2) and peripheral, using the DMAMUX1 for flexible DMA channel mapping.


Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 1

Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 2

Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 3
Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 4

Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 5

Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 6

Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 7

Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 8


Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 9
Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 10
Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 11
Lorawan Protocol Lora Transceiver Module Wireless Iot Cansec Lrw32na-C St-Stm32wle 12

FAQ

Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.

Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
