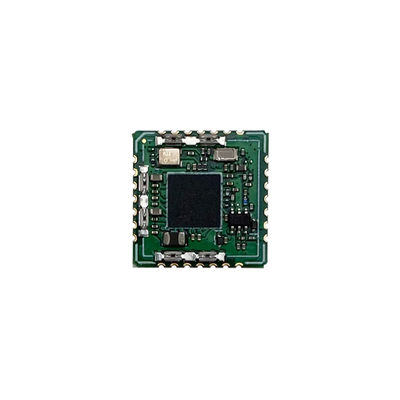

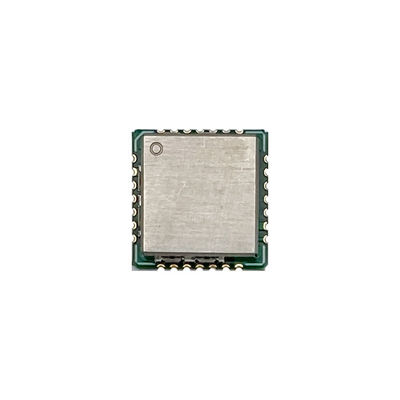

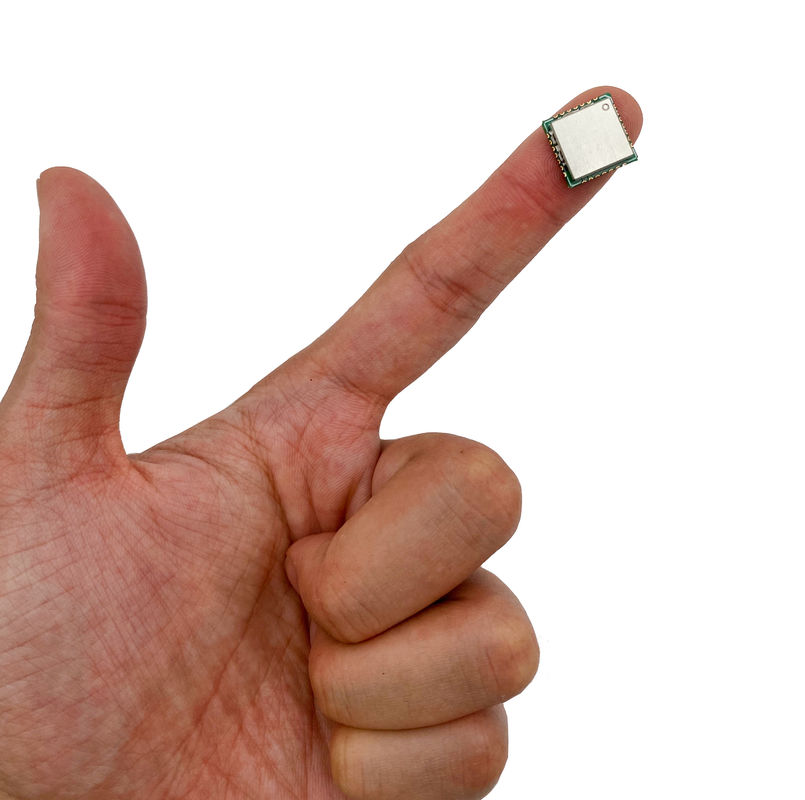

ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module

ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module
ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module

Large Image :  ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LRW32NA-C
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD5.5$ Per Piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module

Description
Chipset: ST-STM32WLE Size: 13*13*2.8mm
Operating Temperature: -20 - 70℃ Operating Voltage: 2.5-3.7V
TX Power: 20dBm RX Sensitivity: -140dBm
Sleep Current Consumption: 2μA Use Environment: Smart City, Industry Automation And Meters
Frequency: 434/868/915MHz Max Range: 4.8km
High Light:

ST-STM32WLE LoRawan Gateway Module

,

20dBm Lora 915mhz Module

,

LoRawan Gateway Module 20dBm

ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 0

Small Size Cansec LoRawan Protocol LRW32Na-C IoT LoRa Gateway Module Base St-Stm32Wle Transmitter LoRa IoT Output Module



Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.7
V
Operating Temperature
-20
-
70
°C
Current
Consumption
Rest
-
2

uA
Receive
-
12.5

mA
Transmit Mode
-
120

mA
TX Power
-

20
dBm
RX Sensitivity
-
-140

dBm



Small Size Cansec LoRawan Protocol LRW32Na-C IoT LoRa Gateway Module Base St-Stm32Wle Transmitter LoRa IoT Output Module

1. The LRW32 long-range wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant LPWAN radio solution: LoRa® (only available in STM32WLE5xx), (G)FSK, (G)MSK, and BPSK.
2. The devices embed high-speed memories (Flash memory up to 256 Kbytes, SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals.
3. The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection and proprietary code readout protection.
4. These devices offer a 12-bit ADC, a 12-bit DAC low-power sample-and-hold, two ultra-low-power comparators associated with a high-accuracy reference voltage generator.
5. The devices embed a low-power RTC with a 32-bit sub-second wakeup counter, one 16-bit single-channel timer, two 16-bit four-channel timers (supporting motor control), one 32-bit four-channel timer and three 16-bit ultra-low-power timers.
6. These devices also embed two DMA controllers (7 channels each), allowing any transfer combination between memory (Flash memory, SRAM1 and SRAM2) and peripheral, using the DMAMUX1 for flexible DMA channel mapping.

Feature Highlight
- LoRa Spread spectrum modulation technology
- Receive Sensitivity as low as -141dBm
- Excellent resistance to blocking
- Supports preamble detection
- programmable bit rate up to 300kbps
- Supports FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes
- Supports automatic RF Signal detection, CAD mode and ultra high speed AFC
- packets with CRC, up to 256 bytes
- Small package with double volume stamps

Application
- Smart meters
- Supply chain and logistics
- Building automation
- Asset tracking

ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 1

ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 2

ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 3
ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 4

ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 5

ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 6

ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 7

ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 8


ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 9
ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 10
ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 11
ST-STM32WLE LoRawan Gateway Module 20dBm Lora 915mhz Module 12
