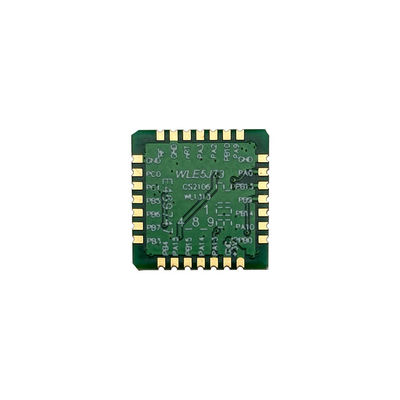

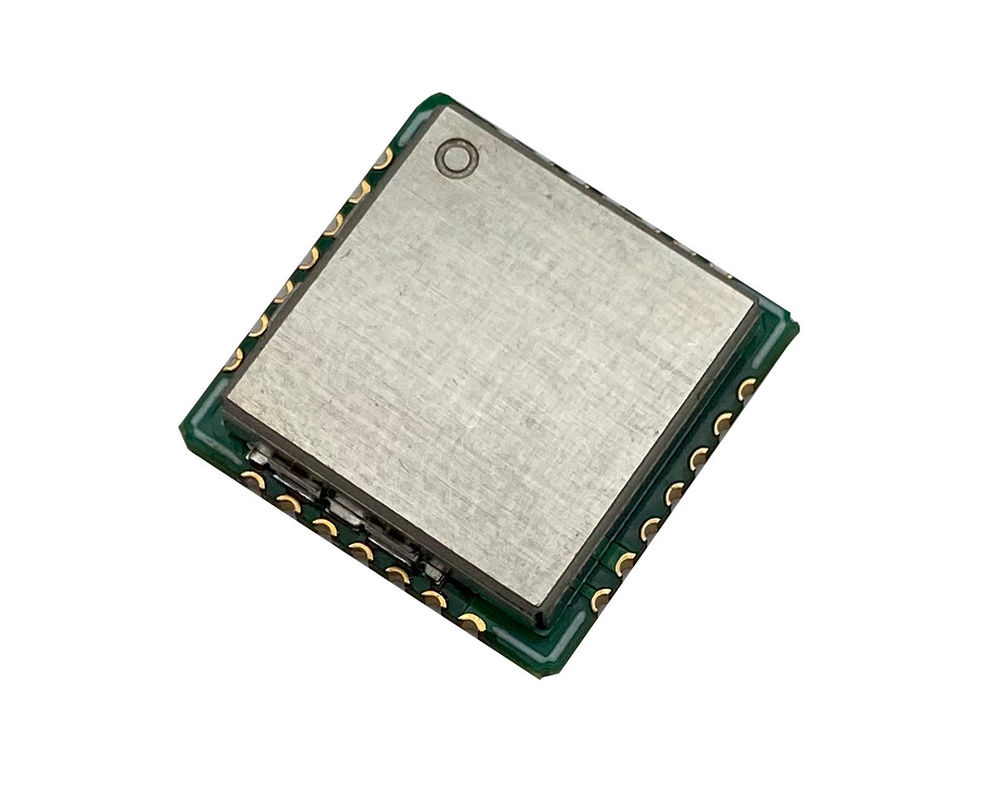

STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module

STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module
STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module

Large Image :  STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LRW32NA-C
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD5.5$ Per Piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module

Description
Chipset: STM32WLE By ST Application: Smart Industry, IoT Related Products.
Size: 13*13*2.8mm Operating Temperature: -20 - 70℃
Operating Voltage: 2.5-3.7V TX Power: 20dBm
RX Sensitivity: -140dBm Sleep Current Consumption: 2μA
Protocol: LoRA Antenna: IPEX For External Antenna
Highlight:

STM32WLE IoT RF LoRa Module

,

Cansec Wireless LoRawan Module

,

RF LoRa Module 20dBm

STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 0

Low Power Consumption IoT LoRa Transceiver RF Module Cansec Small Size LRW32Na-C St-Stm32Wle LoRa/LoRawan Module For Wearable



Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.7
V
Operating Temperature
-20
-
70
°C
Current
Consumption
Rest
-
2

uA
Receive
-
12.5

mA
Transmit Mode
-
120

mA
TX Power
-

20
dBm
RX Sensitivity
-
-140

dBm



Low Power Consumption IoT LoRa Transceiver RF Module Cansec Small Size LRW32Na-C St-Stm32Wle LoRa/LoRawan Module For Wearable

1. The LRW32 long-range wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant LPWAN radio solution: LoRa® (only available in STM32WLE5xx), (G)FSK, (G)MSK, and BPSK.
2. The devices embed high-speed memories (Flash memory up to 256 Kbytes, SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals.
3. The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection and proprietary code readout protection.
4. These devices offer a 12-bit ADC, a 12-bit DAC low-power sample-and-hold, two ultra-low-power comparators associated with a high-accuracy reference voltage generator.
5. The devices embed a low-power RTC with a 32-bit sub-second wakeup counter, one 16-bit single-channel timer, two 16-bit four-channel timers (supporting motor control), one 32-bit four-channel timer and three 16-bit ultra-low-power timers.
6. These devices also embed two DMA controllers (7 channels each), allowing any transfer combination between memory (Flash memory, SRAM1 and SRAM2) and peripheral, using the DMAMUX1 for flexible DMA channel mapping.

STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 1

STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 2

STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 3
STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 4

STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 5

STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 6

STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 7

STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 8


STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 9
STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 10
STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 11
STM32WLE IoT RF LoRa Module 20dBm Cansec Wireless LoRawan Module 12
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
