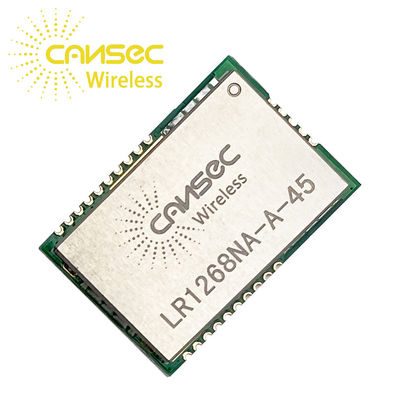

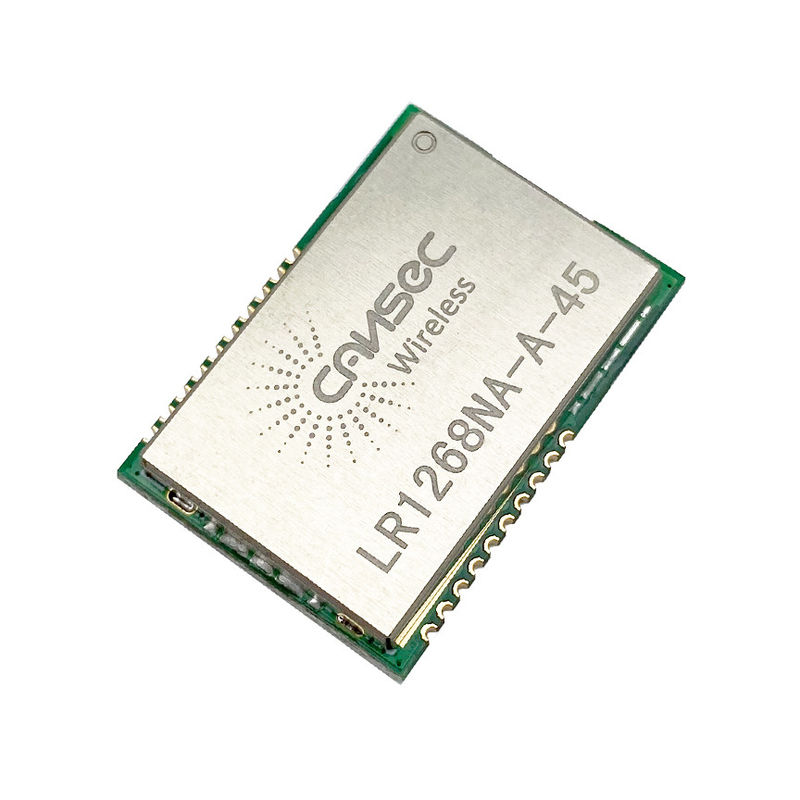

LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm

LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm
LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm

Large Image :  LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1268-NA-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD5.5$ Per Piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm

Description
Chipset: SX1268 By Semtech Size: 24.3*17*3.4mm
Operating Temperature: -20 ~+85℃ Operating Voltage: 1.8-3.7V
TX Power: 20dBm RX Sensitivity: -148dBm
Sleep Current Consumption: 1.5μA Use Environment: Smart City, Industry Automation And Meters
Frequency: 434/470MHz Max Range: 3km
High Light:

SX1268 433mhz Rf Transmitter Receiver Wireless Module

,

LoRa Spread Spectrum SX1268

,

20dBm 433mhz Rf Transmitter Receiver Wireless Module

LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm 0

LoRa spread spectrum SX1268 long distance 433MHz wireless module small size low power consumption wireless module



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.7
V
Operating Temperature
-40
-
85
°C
Current
Consumption
Rest
-
1.5

uA
Receive
-
12

mA
Transmit Mode
-
110

mA
TX Power
-
19
20
dBm
RX Sensitivity
-
-
-148
dBm



LoRa spread spectrum SX1268 long distance 433MHz wireless module small size low power consumption wireless module

The LR1268 module is designed based on SX1268. SX1268 sub-GHz radio transceivers are ideal for long-range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.

The devices are designed to comply with the physical layer requirements of the LoRaWAN specification released by the LoRa Alliance™.

The radio is suitable for systems targeting compliance with radio regulations including but not limited to China regulatory requirements and ETSI EN 300 220 (434 MHz). Continuous frequency coverage from 410 MHz to 810 MHz allows the support of the 490 and 780 MHz Chinese low-power short-range device bands.






LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm 1



Pad Number Name Pin Type Description
1-12 GND Ground Pin Connect to GND
13 VDD POWER 1.8V to 3.7V main chip supply
14 DIO1 I/O Multi-purpose digital IO
15 BUSY O Busy indicator
16 NRESET I Reset trigger input
17 MISO O SPI slave output
18 MOSI I SPI slave input
19 SCK I SPI clock
20 NSS I SPI Slave Select
21 GND Ground Pin Connect to GND
22 GND Ground Pin Connect to GND
23 RF_OUT O RF transmitter output
24 GND Ground Pin Connect to GND
25 GND Ground Pin Connect to GND
















LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm 2LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm 3

LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm 4

LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm 5

LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm 6

LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm 7
LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm 8
LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm 9
LoRa Spread Spectrum SX1268 433mhz Rf Transmitter Receiver Wireless Module 20dBm 10
