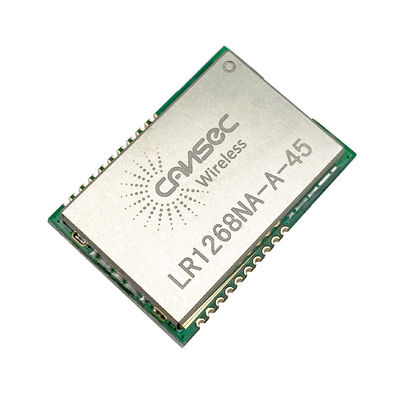

Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module

Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module
Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module

Large Image :  Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1268-NA-A
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD5.5$ Per Piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module

Description
Chipset: SX1268 By Semtech Size: 24.3*17*3.4mm
Operating Temperature: -20 ~+85℃ Operating Voltage: 1.8-3.7V
TX Power: 20dBm RX Sensitivity: -148dBm
Sleep Current Consumption: 1.5μA Use Environment: Smart City, Industry Automation And Meters
Frequency: 434/470MHz Max Range: 3km
Antenna: Non Oscillator Type: TCXO
Protocol: LoRa
High Light:

LoRa 433mhz Wireless Rf Transmitter And Receiver Module

,

SX1268 433mhz Wireless Rf Transmitter And Receiver Module

,

Semtech SX1268 LoRa Module

Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module 0

LoRa spread spectrum SX1268 long distance 433MHz wireless module small size low power consumption wireless module

Cansec Wireless LR1268NA-A SEMTECH SX1268 smart home IoT Solution Long Range Sub-1 GHz LoRa Module



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.7
V
Operating Temperature
-40
-
85
°C
Current
Consumption
Rest
-
1.5

uA
Receive
-
12

mA
Transmit Mode
-
110

mA
TX Power
-
19
20
dBm
RX Sensitivity
-
-
-148
dBm

LoRa spread spectrum SX1268 long distance 433MHz wireless module small size low power consumption wireless module

The LR1268 module is designed based on SX1268. SX1268 sub-GHz radio transceivers are ideal for long-range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.

The devices are designed to comply with the physical layer requirements of the LoRaWAN specification released by the LoRa Alliance™.

The radio is suitable for systems targeting compliance with radio regulations including but not limited to China regulatory requirements and ETSI EN 300 220 (434 MHz). Continuous frequency coverage from 410 MHz to 810 MHz allows the support of the 490 and 780 MHz Chinese low-power short-range device bands.



Applications

  • Smart meters
  • Supply chain and logistics
  • Building automation
  • Agricultural sensors
  • Smart cities
  • Retail store sensors
Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module 1

Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module 2Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module 3

Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module 4

Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module 5

Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module 6

Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module 7
Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module 8
Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module 9
Semtech SX1268 LoRa 433mhz Wireless Rf Transmitter And Receiver Module 10
