LRW2020 21dBm SX1262 LoRa Module 915Mhz Frequency

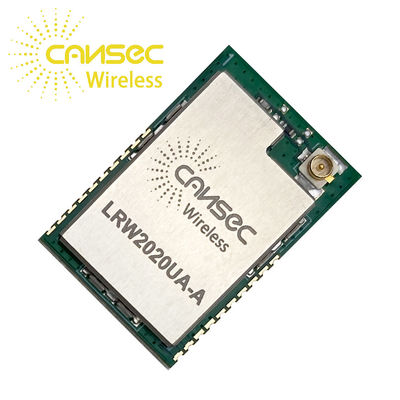

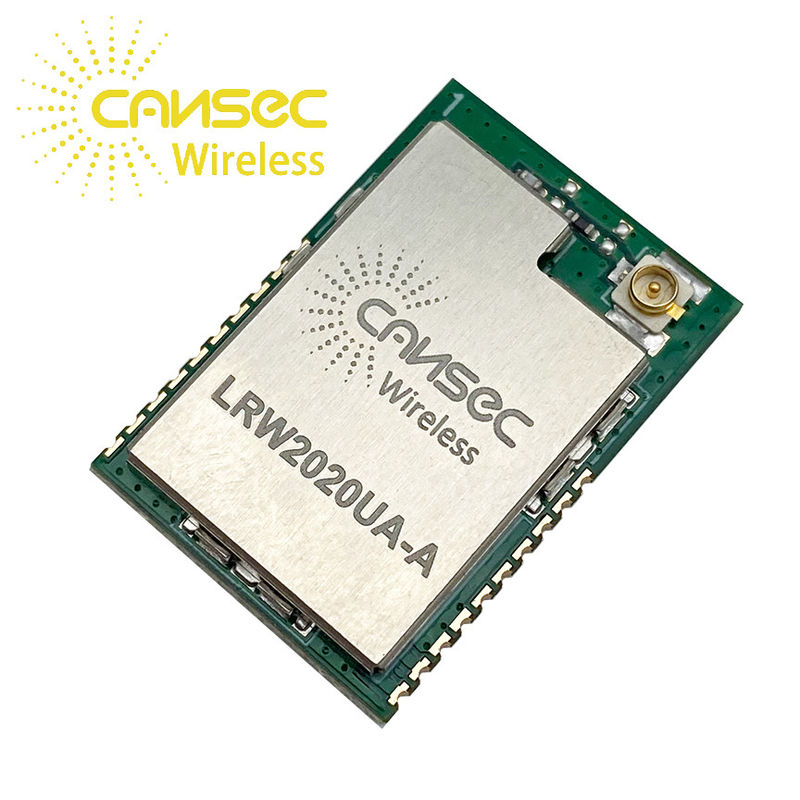

Large Image : LRW2020 21dBm SX1262 LoRa Module 915Mhz Frequency

Product Details:

Place of Origin:	Beijing
Brand Name:	Cansec Wireless
Model Number:	ASR6501

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD 4.90$ per piece
Packaging Details:	Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time:	5-8 weeks
Payment Terms:	T/T
Supply Ability:	20000000 units per year

Contact Now

LRW2020 21dBm SX1262 LoRa Module 915Mhz Frequency

Description

Chipset:	ASR6501	Application:	IoT
Size:	16232.8mm	Operating Temperature:	-20 - 70℃
Operating Voltage:	1.8-3.7V	TX Power:	21dBm
RX Sensitivity:	-148dBm	Sleep Current Consumption:	3μA
Frequency:	434, 868, 915 MHz
Highlight:	21dBm SX1262 LoRa Module , LRW2020 SX1262 LoRa Module , LoRa Module 915Mhz

LRW2020 21dBm SX1262 LoRa Module 915Mhz Frequency 0

LRW2020 ASR6501 Lora Module

Parameter		Min	Typ	Max	Unit
Operating Voltage		1.8	3.3	3.7	V
Operating Temperature		-20	-	+70	℃
Current Consumption	Sleep Mode(Without RF Config Retention, with RTC)	-	3	4	uA
	Receive mode	-	12	-	mA
	Transmit Mode (@+20dBm, Carrier)	-	120	-	mA
TX Power (For Carrier)		-	20	21	dBm
RX Sensitivity (For Lora Modulation)		-	-	-140	dBm
Distance		2			Km

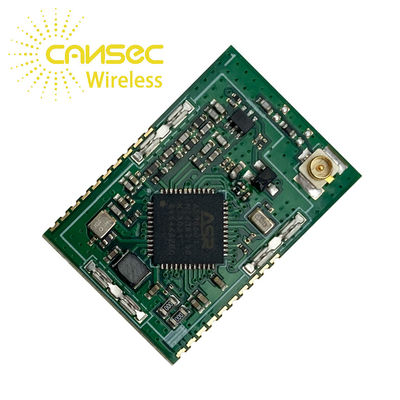

LRW2020UA-A module is designed based on SX1262 and MCU which is a general LoRa Wireless Communication Chipset.The module with an AT instructions firmware, easy to use, reduce the development process of personnel.

LRW2020 21dBm SX1262 LoRa Module 915Mhz Frequency 1

LRW2020 21dBm SX1262 LoRa Module 915Mhz Frequency 5

LRW2020 21dBm SX1262 LoRa Module 915Mhz Frequency 6

LRW2020 21dBm SX1262 LoRa Module 915Mhz Frequency 7

LRW2020 21dBm SX1262 LoRa Module 915Mhz Frequency 8
