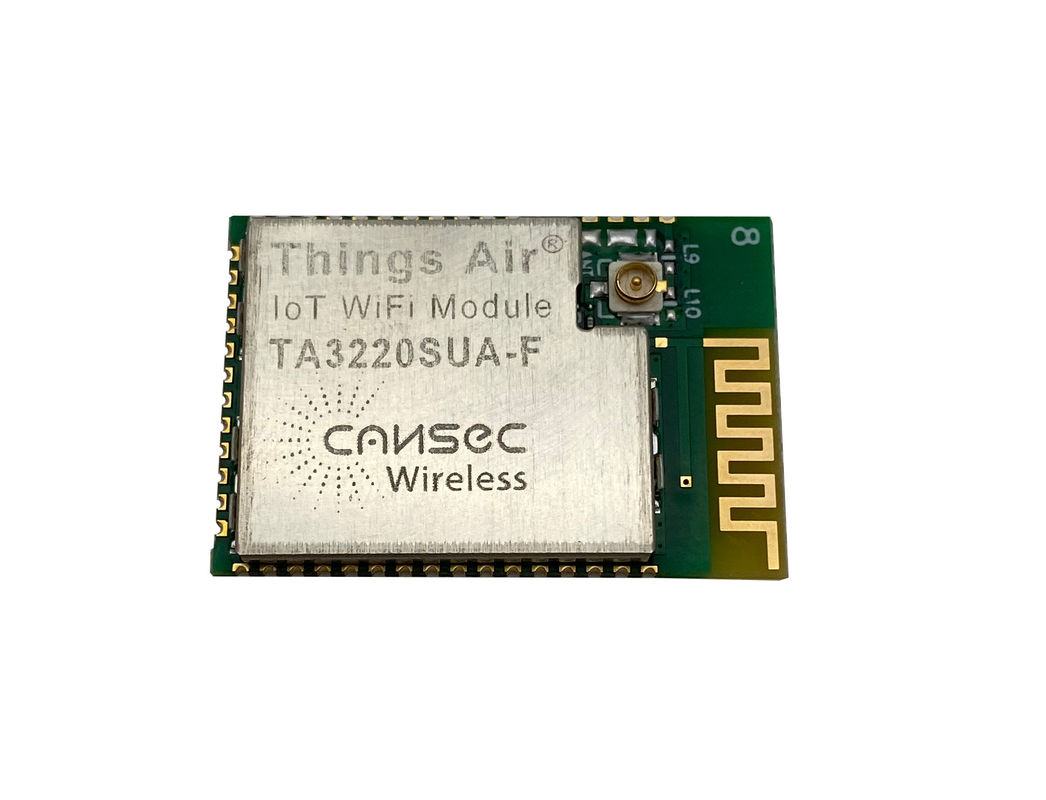

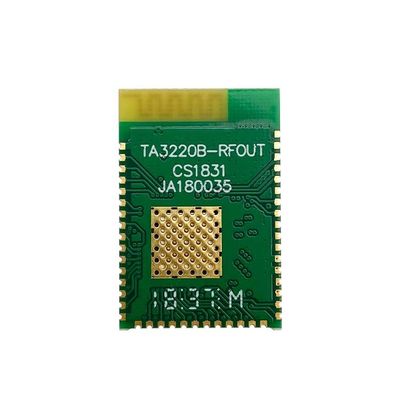

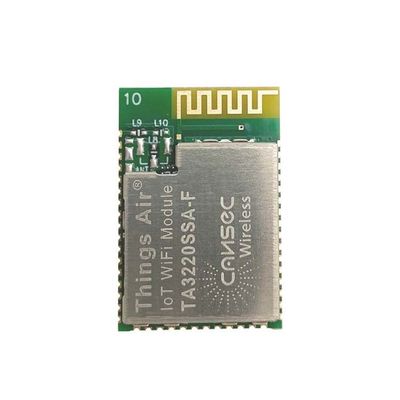

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module
High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module

Large Image :  High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3220SSA-F
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.18$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module

Description
Size: 18.2*26.7*2.8mm TX Power: 17dBm
RX Sensitivity: -95dBm TX Current: 286mA
RX Current: 74mA Standby Current: 1uA
Antenna Type: PCB Antenna Or IPEX Chipset: TI CC3220S
Standard: 802.11b/g/n
High Light:

High Flash Capacity IoT Transceiver

,

IoT Transceiver TA3220SSA-F

,

Cansec Wireless Module

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module 0

Cansec High Flash Capacity IoT Transceiver Wifi Module TA3220SSA-F Ti CC3220 Wifi Module For Smart Home

Parameter
Min
Typ
Max
Unit
Current
Consumption
Sleep Mode(For Hibernate)
-
-
9
uA

Transmit Mode (@18dbm,for carrier)
-
400
450
mA
TX Power (For Carrier)
-
17
20
dBm
RX Sensitivity
-
-
-96
dBm
Distance
190
m



Recommended Operating Conditions



Symbol Condition Min Typ Max Unit
Operating temperature - -20 25 70 ℃
VBAT and VIO Battery mode 2.5 3.3 3.6 V



Cansec High Flash Capacity IoT Transceiver Wifi Module TA3220SSA-F Ti CC3220 Wifi Module For Smart Home
1. TA3220S Module is designed based on TI’s CC3220S which is part of the SimpleLink™ microcontroller (MCU) platform, which share a common, easy-to-use development environment with a single core software development kit (SDK) and rich toolset. A one-time integration of the SimpleLink platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 per cent code reuse when your design requirements change. For more information, visit Overview for SimpleLink™ solutions.
2. Start your Internet-of-Things (IoT) design with a Wi-Fi® CERTIFIED® single-chip MCU System-on-Chip(SoC) with built-in Wi-Fi connectivity. Created for the IoT, the SimpleLink™ CC3220x device family from Texas Instruments™ is a single-chip solution, integrating two physically separated, on-chip MCUs. • An application processor – ARM® Cortex®-M4 MCU with a user-dedicated 256KB of RAM, and an optional 1MB of XIP flash. • A network processor MCU to run all Wi-Fi and Internet logical layers. This ROM-based subsystem includes an 802.11b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure internet connections with 256-bit encryption.
3. The CC3220x wireless MCU family is part of the second generation of TI’s Internet-on-a-chip™ family of solutions. This generation introduces new features and capabilities that further simplify the connectivity of things to the Internet. The new capabilities including the following:

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module 1

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module 2



High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module 3

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module 4

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module 5

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module 6

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module 7

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module 8

High Flash Capacity IoT Transceiver TA3220SSA-F Cansec Wireless Module 9
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
