IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F

IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F

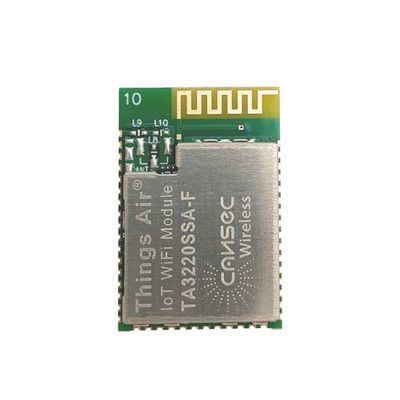

IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F

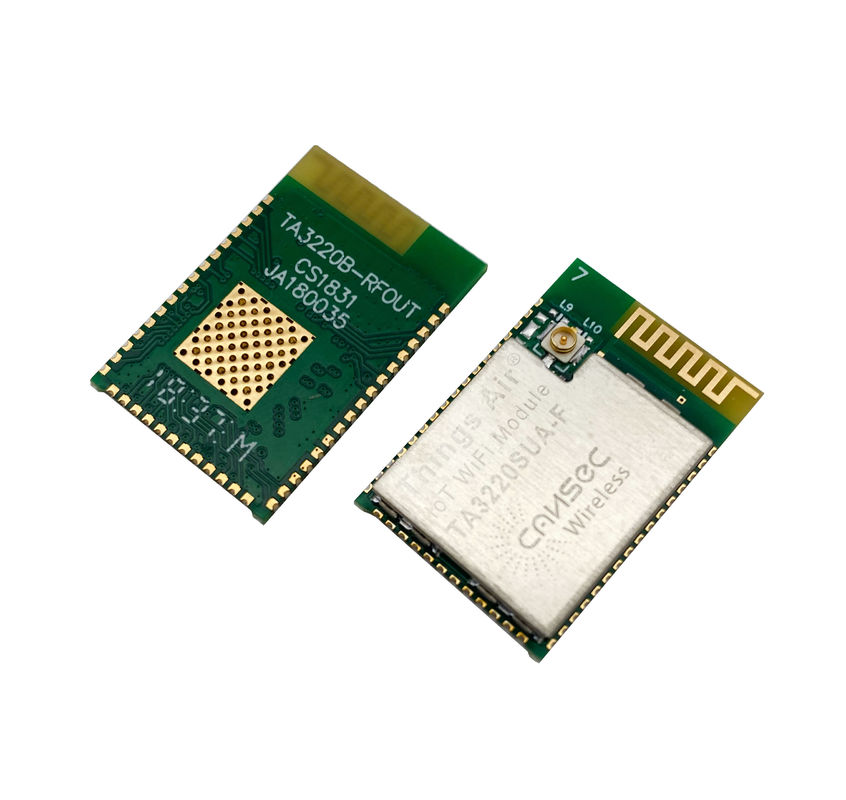

Large Image :  IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3220SSA-F
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.18$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F

Description
Size: 18.2*26.7*2.8mm TX Power: 17dBm
RX Sensitivity: -95dBm TX Current: 286mA
RX Current: 74mA Standby Current: 1uA
Antenna Type: PCB Antenna Or IPEX Connector Chipset: CC3220S By Texas Instruments
Protocol: Wi-Fi IPV4/IPV6 Range: 190M
High Light:

Ti CC3220 IoT Wifi Module

,

OEM Cansec TA3220SSA-F

,

IPV4 IPV6 IoT Wifi Module







Pkg. Pin







Pin Alias







Use





Select as Wakeup Source



Config. Addl. Analog Mux





Muxed With JTAG







Dig. Pin Mux Config. Reg.

Dig. Pin Mux Config.

Mode Value







Signal Name







Signal Description







Signal Direction





1 RF OUT RF OUT N/A N/A N/A N/A N/A N/A For CC3220NA-F N/A
2 GND GND N/A N/A N/A N/A N/A GND Connect ground N/A
3(7) ANTSEL1 O only No

User config not required

(8)

No GPIO_PAD_ CONFIG_26 (0x4402 E108) 0 ANTSEL1(3) Antenna selection control O
4(7) ANTSEL2 O only No

User config not required

(8)

No GPIO_PAD_ CONFIG_27 (0x4402 E10C) 0 ANTSEL2(3) Antenna selection control O
5 nRESET Global reset N/A N/A N/A N/A N/A nRESET Master chip reset. Active low. Internal Pullup N/A
6(4) SOP2 O only No No No



GPIO_PAD_ CONFIG_ 25 (0x4402 E104)

0 GPIO25 GPIO O
9 GT_PWM02 Pulse-width modulated O/P O
2 McAFSX I2S audio port frame sync O
See (5) TCXO_EN Enable to optional external 40-MHz TCXO



O

See (6) SOP2 Sense-on-power 2 I



For full Spec, please refer to our module datasheet



IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F 0

High Flash Capacity Rf Transceiver Wifi Switch Module IoT Solutions OEM Cansec TA3220SSA-F Ti CC3220 Wifi Module

Parameter
Min
Typ
Max
Unit
Current
Consumption
Sleep Mode(For Hibernate)
-
-
9
uA

Transmit Mode (@18dbm,for carrier)
-
400
450
mA
TX Power (For Carrier)
-
17
20
dBm
RX Sensitivity
-
-
-96
dBm
Distance
190
m
High Flash Capacity Rf Transceiver Wifi Switch Module IoT Solutions OEM Cansec TA3220SSA-F Ti CC3220 Wifi Module
Current Consumption
VBAT=3.6V
Mode Parameter Conditions Typ Units
MCU Active TX Currnet 1DSSS 286 mA
6OFDM 255
54OFDM 232
Rx Current 1DSSS 74
6OFDM 74
MCU SLEEP TX Currnet 1DSSS 282
6OFDM 251
54OFDM 228
Rx Current 1DSSS 70
6OFDM 70
MCU LPDS TX Currnet 1DSSS 266
6OFDM 242
54OFDM 1V7
Rx Current 1DSSS 53
6OFDM 53
Peak Calibration current VBAT=3.3V 450
VBAT=2.3V 670

1. TA3220S Module is designed based on TI’s CC3220S which is part of the SimpleLink™ microcontroller (MCU) platform, which share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 per cent code reuse when your design requirements change. For more information, visit Overview for SimpleLink™ solutions.
2. Start your Internet-of-Things (IoT) design with a Wi-Fi® CERTIFIED® single-chip MCU System-on-Chip(SoC) with built-in Wi-Fi connectivity. Created for the IoT, the SimpleLink™ CC3220x device family from Texas Instruments™ is a single-chip solution, integrating two physically separated, on-chip MCUs. • An application processor – ARM® Cortex®-M4 MCU with a user-dedicated 256KB of RAM, and an optional 1MB of XIP flash. • A network processor MCU to run all Wi-Fi and Internet logical layers. This ROM-based subsystem includes an 802.11b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure internet connections with 256-bit encryption.
3. The CC3220x wireless MCU family is part of the second generation of TI’s Internet-on-a-chip™ family of solutions. This generation introduces new features and capabilities that further simplify the connectivity of things to the Internet. The new capabilities including the following:
Enhanced Wi-Fi provisioning Enhanced power consumption
Enhanced file system security (supported only by the CC3220S and CC3220SF devices) Wi-Fi AP connection with up to four stations More concurrently opened BSD sockets; up to 16 BSD sockets, of which 6 are secure
HTTPS support
RESTful API support
Asymmetric keys crypto library
The CC3220x wireless MCU family supports the following modes: station, AP, and Wi-Fi Direct®. The device also supports WPA2 personal and enterprise security. This subsystem includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols. The device supports a variety of Wi-Fi provisioning methods including HTTP based on AP mode, SmartConfig™ Technology, and WPS2.0.
The power-management subsystem includes integrated DC-DC converters that support a wide range of supply voltages. This subsystem enables low-power consumption modes for extended battery life, such as low-power deep sleep, hibernate with RTC (consuming only 4.5 μA), and shutdown mode (consuming only 1 μA).
The device includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD, UART, SPI, I2C, and 4-channel ADC.


IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F 1

IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F 2

IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F 3

IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F 4

IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F 5

IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F 6

IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F 7

IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F 8

IPV4 IPV6 Ti CC3220 IoT Wifi Module OEM Cansec TA3220SSA-F 9
