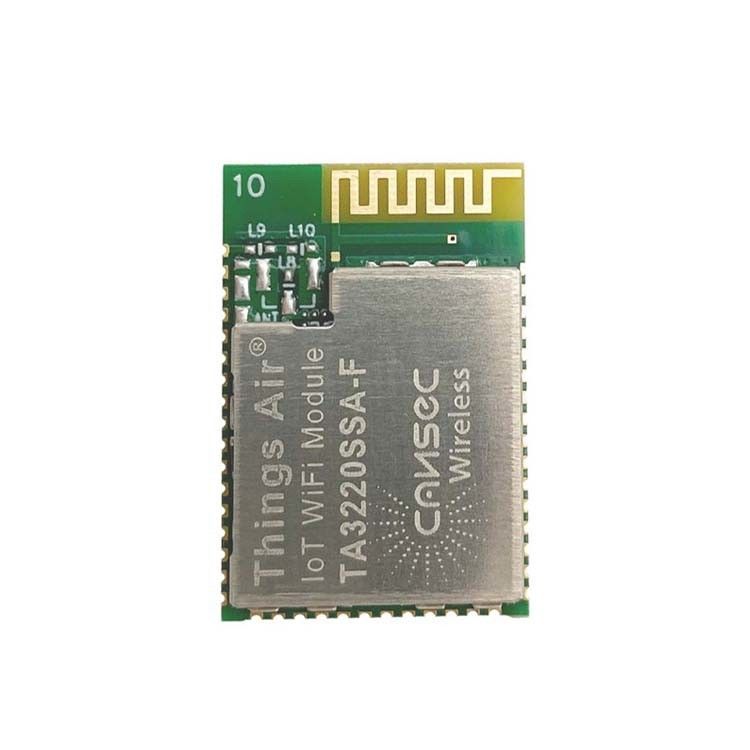

RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module

RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module
RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module

Large Image :  RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3220SSA-F
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.18$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module

Description
Size: 18.2*26.7*2.8mm TX Power: 17dBm
RX Sensitivity: -95dBm TX Current: 286mA
RX Current: 74mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: CC3220S
High Light:

RX 74mA IoT Wifi Module

,

Ti CC3220 IoT Gateway Module

,

CC3220S IoT Wifi Module





RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module 0

Cansec High Flash Capacity Wireless IoT Gateway Wifi Module TA3220SSA-F Ti CC3220 Wifi Gateway Module Switch

Parameter
Min
Typ
Max
Unit
Current
Consumption
Sleep Mode(For Hibernate)
-
-
9
uA

Transmit Mode (@18dbm,for carrier)
-
400
450
mA
TX Power (For Carrier)
-
17
20
dBm
RX Sensitivity
-
-
-96
dBm
Distance
190
m
Cansec High Flash Capacity Wireless IoT Gateway Wifi Module TA3220SSA-F Ti CC3220 Wifi Gateway Module Switch
1. TA3220S Module is designed based on TI’s CC3220S which is part of the SimpleLink™ microcontroller (MCU) platform, which share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 per cent code reuse when your design requirements change. For more information, visit Overview for SimpleLink™ solutions.
2. Start your Internet-of-Things (IoT) design with a Wi-Fi® CERTIFIED® single-chip MCU System-on-Chip(SoC) with built-in Wi-Fi connectivity. Created for the IoT, the SimpleLink™ CC3220x device family from Texas Instruments™ is a single-chip solution, integrating two physically separated, on-chip MCUs. • An application processor – ARM® Cortex®-M4 MCU with a user-dedicated 256KB of RAM, and an optional 1MB of XIP flash. • A network processor MCU to run all Wi-Fi and Internet logical layers. This ROM-based subsystem includes an 802.11b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure internet connections with 256-bit encryption.
3. The CC3220x wireless MCU family is part of the second generation of TI’s Internet-on-a-chip™ family of solutions. This generation introduces new features and capabilities that further simplify the connectivity of things to the Internet. The new capabilities including the following:
Enhanced Wi-Fi provisioning Enhanced power consumption
Enhanced file system security (supported only by the CC3220S and CC3220SF devices) Wi-Fi AP connection with up to four stations More concurrently opened BSD sockets; up to 16 BSD sockets, of which 6 are secure
HTTPS support
RESTful API support
Asymmetric keys crypto library
The CC3220x wireless MCU family supports the following modes: station, AP, and Wi-Fi Direct®. The device also supports WPA2 personal and enterprise security. This subsystem includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols. The device supports a variety of Wi-Fi provisioning methods including HTTP based on AP mode, SmartConfig™ Technology, and WPS2.0.
The power-management subsystem includes integrated DC-DC converters that support a wide range of supply voltages. This subsystem enables low-power consumption modes for extended battery life, such as low-power deep sleep, hibernate with RTC (consuming only 4.5 μA), and shutdown mode (consuming only 1 μA).
The device includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD, UART, SPI, I2C, and 4-channel ADC.

RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module 1

RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module 2



RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module 3

RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module 4

RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module 5

RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module 6

RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module 7

RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module 8

RX 74mA CC3220S IoT Wifi Module Ti CC3220 IoT Gateway Module 9

FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.


The theoretical max speed of 802.11ac is eight 160MHz 256-QAM channels, each of which are capable of 866.7Mbps — a grand total of 6,933Mbps, or just shy of 7Gbps. That’s a transfer rate of 900 megabytes per second — more than you can squeeze down a SATA 3 link. In the real world, thanks to channel contention, you probably won’t get more than two or three 160MHz channels, so the max speed comes down to somewhere between 1.7Gbps and 2.5Gbps. Compare this with 802.11n’s max theoretical speed, which is 600Mbps.in situations where you don’t need the maximum performance and reliability of wired GigE, though, 802.11ac is very compelling indeed. Instead of cluttering up your living room by running an Ethernet cable to the home theater PC under your TV, 802.11ac now has enough bandwidth to wirelessly stream the highest-definition content to your HTPC. For all but the most demanding use cases, 802.11ac is a very viable alternative to Ethernet.
