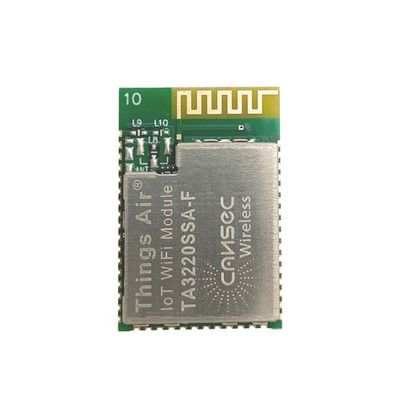

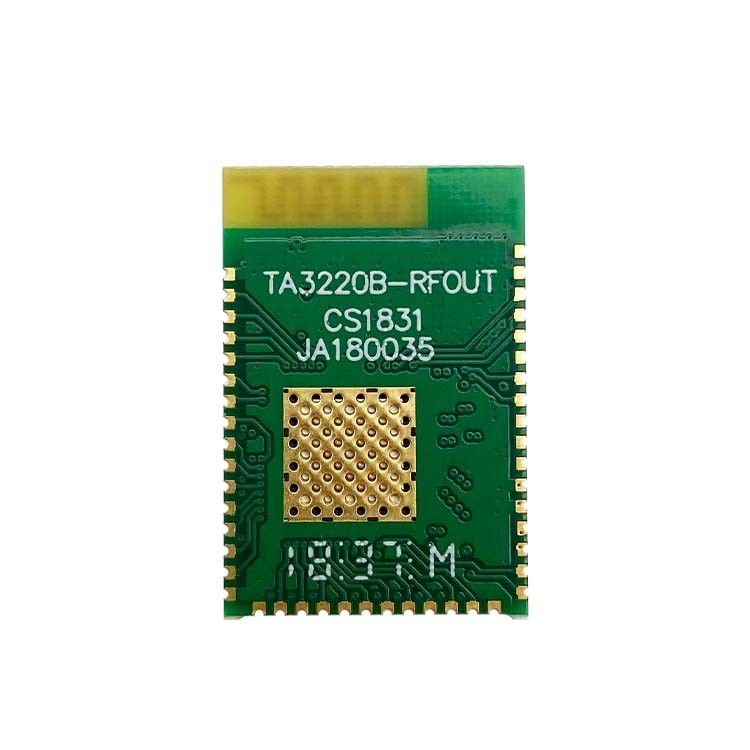

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220
TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220 TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220

Large Image :  TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3220SSA-F
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.18$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220

Description
Size: 18.2*26.7*2.8mm TX Power: 17dBm
RX Sensitivity: -95dBm TX Current: 286mA
RX Current: 74mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: CC3220S
High Light:

TX 286mA 2.4Ghz Wifi Module

,

2.4Ghz Wifi Module Cansec

,

TA3220SSA-F Ti CC3220

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220 0

2.4Ghz Transparent AT Command Wireless Transceiver Wifi Switch Module Cansec TA3220SSA-F Ti CC3220 Wireless Wifi Module

Parameter
Min
Typ
Max
Unit
Current
Consumption
Sleep Mode(For Hibernate)
-
-
9
uA

Transmit Mode (@18dbm,for carrier)
-
400
450
mA
TX Power (For Carrier)
-
17
20
dBm
RX Sensitivity
-
-
-96
dBm
Distance
190
m
2.4Ghz Transparent AT Command Wireless Transceiver Wifi Switch Module Cansec TA3220SSA-F Ti CC3220 Wireless Wifi Module

1. TA3220S Module is designed based on TI’s CC3220S which is part of the SimpleLink™ microcontroller (MCU) platform, which share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 per cent code reuse when your design requirements change. For more information, visit Overview for SimpleLink™ solutions.
2. Start your Internet-of-Things (IoT) design with a Wi-Fi® CERTIFIED® single-chip MCU System-on-Chip(SoC) with built-in Wi-Fi connectivity. Created for the IoT, the SimpleLink™ CC3220x device family from Texas Instruments™ is a single-chip solution, integrating two physically separated, on-chip MCUs. • An application processor – ARM® Cortex®-M4 MCU with a user-dedicated 256KB of RAM, and an optional 1MB of XIP flash. • A network processor MCU to run all Wi-Fi and Internet logical layers. This ROM-based subsystem includes an 802.11b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure internet connections with 256-bit encryption.
3. The CC3220x wireless MCU family is part of the second generation of TI’s Internet-on-a-chip™ family of solutions. This generation introduces new features and capabilities that further simplify the connectivity of things to the Internet. The new capabilities including the following:
• Enhanced Wi-Fi provisioning • Enhanced power consumption
• Enhanced file system security (supported only by the CC3220S and CC3220SF devices) Wi-Fi AP connection with up to four stations • More concurrently opened BSD sockets; up to 16 BSD sockets, of which 6 are secure
• HTTPS support
• RESTful API support
• Asymmetric keys crypto library
• The CC3220x wireless MCU family supports the following modes: station, AP, and Wi-Fi Direct®. The device also supports WPA2 personal and enterprise security. This subsystem includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols. The device supports a variety of Wi-Fi provisioning methods including HTTP based on AP mode, SmartConfig™ Technology, and WPS2.0.
• The power-management subsystem includes integrated DC-DC converters that support a wide range of supply voltages. This subsystem enables low-power consumption modes for extended battery life, such as low-power deep sleep, hibernate with RTC (consuming only 4.5 μA), and shutdown mode (consuming only 1 μA).
• The device includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD, UART, SPI, I2C, and 4-channel ADC.

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220 1

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220 2



TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220 3

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220 4

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220 5

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220 6

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220 7

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220 8

TX 286mA 2.4Ghz Wifi Module Cansec TA3220SSA-F Ti CC3220 9
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.

802.11ac also introduces standardized beamforming (802.11n had it, but it wasn’t standardized, which made interoperability an issue). Beamforming is essentially transmitting radio signals in such a way that they’re directed at a specific device. This can increase overall throughput and make it more consistent, as well as reduce power consumption. Beamforming can be done with smart antennae that physically move to track the device, or by modulating the amplitude and phase of the signals so that they destructively interfere with each other, leaving just a narrow, not-interfered-with beam. 802.11n uses this second method, which can be implemented by both routers and mobile devices. Finally, 802.11ac, like 802.11 versions before it, is fully backwards compatible with 802.11n and 802.11g — so you can buy an 802.11ac router today, and it should work just fine with your older WiFi devices.
