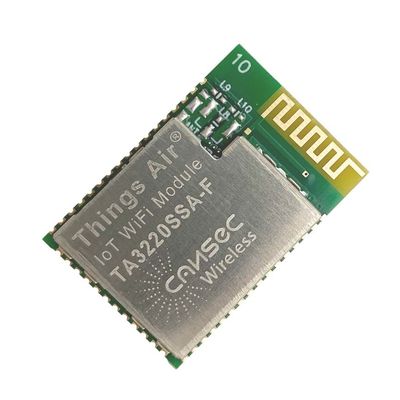

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text
Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text

Large Image :  Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3220SSA-F
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.18$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text

Description
Size: 18.2*26.7*2.8mm TX Power: 17dBm
RX Sensitivity: -95dBm TX Current: 286mA
RX Current: 74mA Standby Current: 1uA
Antenna Type: PCB Antenna Chipset: CC3220S
Highlight:

Cansec 2.4 Wifi Rf Module

,

Wifi Rf Module TA3220SSA-F

,

Ti CC3220

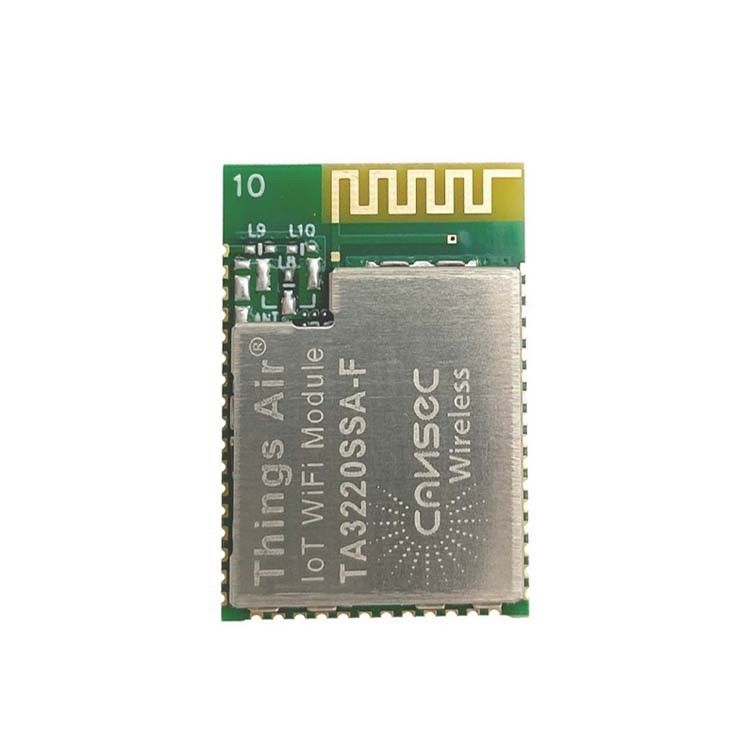

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text 0

Smart Home Cansec 2.4 Wifi Transceiver Rf Module TA3220SSA-F Cost Effecticve Ti CC3220 Wifi Module Full Running Text

Parameter
Min
Typ
Max
Unit
Current
Consumption
Sleep Mode(For Hibernate)
-
-
9
uA

Transmit Mode (@18dbm,for carrier)
-
400
450
mA
TX Power (For Carrier)
-
17
20
dBm
RX Sensitivity
-
-
-96
dBm
Distance
190
m
Smart Home Cansec 2.4 Wifi Transceiver Rf Module TA3220SSA-F Cost Effecticve Ti CC3220 Wifi Module Full Running Text

1. TA3220S Module is designed based on TI’s CC3220S which is part of the SimpleLink™ microcontroller (MCU) platform, which share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 per cent code reuse when your design requirements change. For more information, visit Overview for SimpleLink™ solutions.
2. Start your Internet-of-Things (IoT) design with a Wi-Fi® CERTIFIED® single-chip MCU System-on-Chip(SoC) with built-in Wi-Fi connectivity. Created for the IoT, the SimpleLink™ CC3220x device family from Texas Instruments™ is a single-chip solution, integrating two physically separated, on-chip MCUs. • An application processor – ARM® Cortex®-M4 MCU with a user-dedicated 256KB of RAM, and an optional 1MB of XIP flash. • A network processor MCU to run all Wi-Fi and Internet logical layers. This ROM-based subsystem includes an 802.11b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure internet connections with 256-bit encryption.
3. The CC3220x wireless MCU family is part of the second generation of TI’s Internet-on-a-chip™ family of solutions. This generation introduces new features and capabilities that further simplify the connectivity of things to the Internet. The new capabilities including the following:
• Enhanced Wi-Fi provisioning • Enhanced power consumption
• Enhanced file system security (supported only by the CC3220S and CC3220SF devices) Wi-Fi AP connection with up to four stations • More concurrently opened BSD sockets; up to 16 BSD sockets, of which 6 are secure
• HTTPS support
• RESTful API support
• Asymmetric keys crypto library
• The CC3220x wireless MCU family supports the following modes: station, AP, and Wi-Fi Direct®. The device also supports WPA2 personal and enterprise security. This subsystem includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols. The device supports a variety of Wi-Fi provisioning methods including HTTP based on AP mode, SmartConfig™ Technology, and WPS2.0.
• The power-management subsystem includes integrated DC-DC converters that support a wide range of supply voltages. This subsystem enables low-power consumption modes for extended battery life, such as low-power deep sleep, hibernate with RTC (consuming only 4.5 μA), and shutdown mode (consuming only 1 μA).
• The device includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD, UART, SPI, I2C, and 4-channel ADC.

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text 1

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text 2



Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text 3

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text 4

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text 5

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text 6

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text 7

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text 8

Cansec 2.4 Wifi Rf Module TA3220SSA-F Ti CC3220 Full Running Text 9
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.

What is 802.11ac WiFi, and how much faster than 802.11n is it?

If you’re looking for faster WiFi performance, you want 802.11ac — it’s as simple as that. In essence, 802.11ac is a supercharged version of 802.11n (the current WiFi standard that your smartphone and laptop probably use), offering link speeds ranging from 433 megabits-per-second (Mbps), all the way through to several gigabits per second. To achieve speeds that are dozens of times faster than 802.11n, 802.11ac works exclusively in the 5GHz band, uses a ton of bandwidth (80 or 160MHz), operates in up to eight spatial streams (MIMO), and employs a kind of technology called beamforming. For more details on what 802.11ac is, and how it will eventually replace wired gigabit Ethernet networking at home and in the office.

How 802.11ac works
