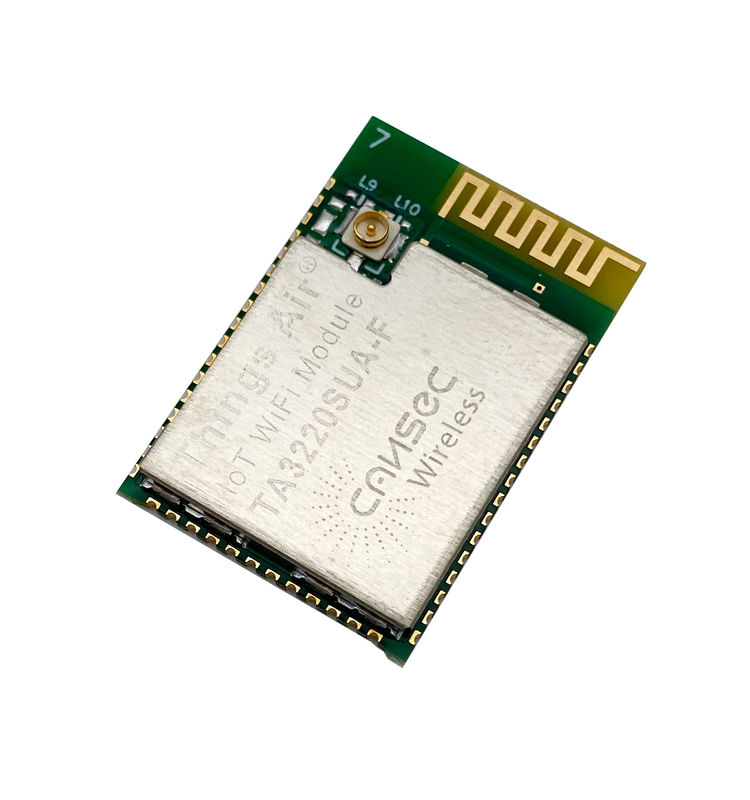

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM

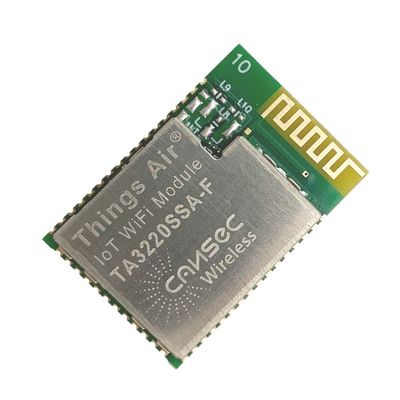

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM

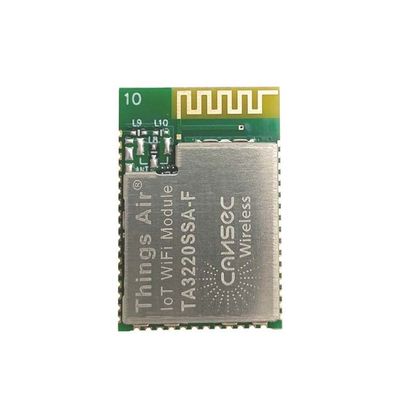

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM

Large Image :  286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3220SSA-F
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.18$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM

Description
Size: 18.2*26.7*2.8mm TX Power: 17dBm
RX Sensitivity: -95dBm TX Current: 286mA
RX Current: 74mA Standby Current: 1uA
Antenna Type: Strip Antenna Or IPEX Chipset: CC3220S By Texas Instruments
RAM: 256KB
High Light:

190M Long Range Rf Transmitter And Receiver Module

,

256KB RAM long range wifi module

,

286mA Long Range Rf Transmitter And Receiver Module





286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 0

Wifi Module 190M Long Range Wireless Transmitter And Receiver Ipv4 & Ipv6 Cansec TA3220SSA-F Ti CC3220 Wifi Module

Parameter
Min
Typ
Max
Unit
Current
Consumption
Sleep Mode(For Hibernate)
-
-
9
uA

Transmit Mode (@18dbm,for carrier)
-
400
450
mA
TX Power (For Carrier)
-
17
20
dBm
RX Sensitivity
-
-
-96
dBm
Distance
190
m
Wifi Module 190M Long Range Wireless Transmitter And Receiver Ipv4 & Ipv6 Cansec TA3220SSA-F Ti CC3220 Wifi Module

1. TA3220S Module is designed based on TI’s CC3220S which is part of the SimpleLink™ microcontroller (MCU) platform, which share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 per cent code reuse when your design requirements change. For more information, visit Overview for SimpleLink™ solutions.
2. Start your Internet-of-Things (IoT) design with a Wi-Fi® CERTIFIED® single-chip MCU System-on-Chip(SoC) with built-in Wi-Fi connectivity. Created for the IoT, the SimpleLink™ CC3220x device family from Texas Instruments™ is a single-chip solution, integrating two physically separated, on-chip MCUs. • An application processor – ARM® Cortex®-M4 MCU with a user-dedicated 256KB of RAM, and an optional 1MB of XIP flash. • A network processor MCU to run all Wi-Fi and Internet logical layers. This ROM-based subsystem includes an 802.11b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure internet connections with 256-bit encryption.
3. The CC3220x wireless MCU family is part of the second generation of TI’s Internet-on-a-chip™ family of solutions. This generation introduces new features and capabilities that further simplify the connectivity of things to the Internet. The new capabilities including the following:
Enhanced Wi-Fi provisioning Enhanced power consumption
Enhanced file system security (supported only by the CC3220S and CC3220SF devices) Wi-Fi AP connection with up to four stations More concurrently opened BSD sockets; up to 16 BSD sockets, of which 6 are secure
HTTPS support
RESTful API support
Asymmetric keys crypto library
The CC3220x wireless MCU family supports the following modes: station, AP, and Wi-Fi Direct®. The device also supports WPA2 personal and enterprise security. This subsystem includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols. The device supports a variety of Wi-Fi provisioning methods including HTTP based on AP mode, SmartConfig™ Technology, and WPS2.0.
The power-management subsystem includes integrated DC-DC converters that support a wide range of supply voltages. This subsystem enables low-power consumption modes for extended battery life, such as low-power deep sleep, hibernate with RTC (consuming only 4.5 μA), and shutdown mode (consuming only 1 μA).
The device includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD, UART, SPI, I2C, and 4-channel ADC.

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 1

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 2



286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 3

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 4

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 5

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 6

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 7

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 8

286mA 190M Long Range Rf Transmitter And Receiver Module 256KB RAM 9

FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
how does it work? Similar to the traditional transistor radio, WiFi networks transmit information over the air using radio waves, which are a type of

electromagnetic radiation with wavelengths in the electromagnetic spectrum longer than infrared light.WiFi rdio waves typically have the frequency of either 2.4 gigahertz or 5.8 gigahertz. These 2 wifi frequency bands are then subdivided into multiple channels, with each channel possibly being shared by many different networks.When you download a file over a WiFi network, a device known as a wifi router first receives the data from the internet via your broadband internet connection and then converts it into radio waves. The wireless router then emits the radio waves to the surrounding area, and the wireless device that has initiated the download request captures them and decodes them.Even though NetSpot is used by professionals, it’s also suitable for home users who don’t have time to learn about the ins and outs of network administration yet still want to enjoy the wifi speed they deserve and have paid for. NetSpot runs on any MacBook running macOS 10.10+ or any laptop with Windows 7/8/10.
