Iot Control ASR6501 Chipset Microchip Lora Module

Iot Control ASR6501 Chipset Microchip Lora Module
Iot Control ASR6501 Chipset Microchip Lora Module Iot Control ASR6501 Chipset Microchip Lora Module

Large Image :  Iot Control ASR6501 Chipset Microchip Lora Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: ASR6501
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 4.90$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

Iot Control ASR6501 Chipset Microchip Lora Module

Description
Chipset: ASR6501 Application: IoT
Size: 16*23*2.8mm Operating Temperature: -20 - 70℃
Operating Voltage: 1.8-3.7V TX Power: 21dBm
RX Sensitivity: -148dBm Sleep Current Consumption: 3μA
Frequency: 434, 868, 915 MHz Name: Iot Control ASR6501 Chipset Microchip Lora Module
High Light:

asr6501 chipset microchip lora module

,

iot control microchip lora module

,

asr6501 lora wireless module

Iot Control ASR6501 Chipset Microchip Lora Module 0

Smart City & Farming Use IoT Control Module Cansec LoRawan LRW2020 ASR6501 Wireless Receiver 915Mhz LoRa Module


Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
3.3
3.7
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode(Without RF Config Retention, with RTC)
-
3
4
uA
Receive mode
-
12
-
mA
Transmit Mode (@+20dBm, Carrier)
-
120
-
mA
TX Power (For Carrier)
-
20
21
dBm
RX Sensitivity (For Lora Modulation)
-
-
-140
dBm
Distance
2
Km



Smart City & Farming Use IoT Control Module Cansec LoRawan LRW2020 ASR6501 Wireless Receiver 915Mhz LoRa Module

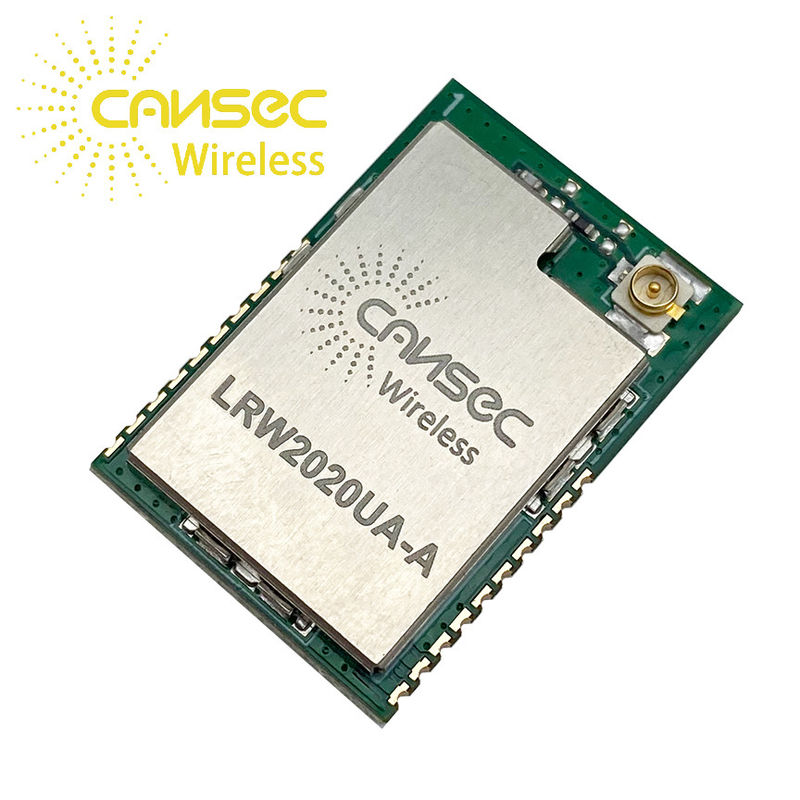

LRW2020UA-A module is designed based on SX1262 and MCU which is a general LoRa Wireless Communication Chipset.The module with an AT instructions firmware, easy to use, reduce the development process of personnel.



Iot Control ASR6501 Chipset Microchip Lora Module 1Iot Control ASR6501 Chipset Microchip Lora Module 2Iot Control ASR6501 Chipset Microchip Lora Module 3

Iot Control ASR6501 Chipset Microchip Lora Module 4

Iot Control ASR6501 Chipset Microchip Lora Module 5

Iot Control ASR6501 Chipset Microchip Lora Module 6

Iot Control ASR6501 Chipset Microchip Lora Module 7

Iot Control ASR6501 Chipset Microchip Lora Module 8

Iot Control ASR6501 Chipset Microchip Lora Module 9
Iot Control ASR6501 Chipset Microchip Lora Module 10
Iot Control ASR6501 Chipset Microchip Lora Module 11
Iot Control ASR6501 Chipset Microchip Lora Module 12
FAQ

Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
